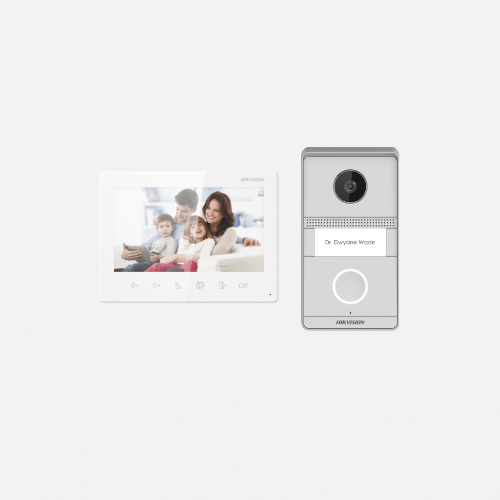

HIKVISION DS-KIS101-P/Flush 2-Wire Analog Intercom Kit

分類: 標籤:

描述

免費上門報價




HIKVISION DS-KIS101-P/Flush 2-Wire Analog Intercom Kit

2-Wire Analog Intercom Kit

  • 2-Wire plug & play, easy, cost-efficient
  • Receive video call and Unlock via indoor station
  • 7-inch TFT screen with 1024*600 resolution
  • 2MP HD colorful camera
  • View in color, even in darkness
  • One-touch calling with nametag
  • IP65 water resistant, preventing from water ingress
  • IK7 vandal resistant
  • 2 lock relays, power supply for one electric lock (Up to 12V 1A)

Door Station/System Parameters

  • Operation System- Embedded analog operation system

Door Station/Video Parameters

  • Supplement Light- White light supplement
  • Lens- Low Illumination 2 MP HD IR Camera
  • FOV- Horizontal: 100°, Vertical: 69°
  • WDR- Support
  • Resolution- 2MP

Door Station/Audio Parameters

  • Audio Input- Built-in omnidirectional microphone
  • Audio Output- Built-in loudspeaker (More than 80 dB within 20 cm)
  • Volume Adjustment- Adjustment with screwdriver

Door Station/Device Interfaces

  • Alarm Input- 4
  • Two-Wire- 1
  • TAMPER- 1
  • Exit Button- 2
  • Lock Control- 2, locking time can be adjusted via DIP switch ( Max. 7 s)
  • Door Contact Input- 2
  • Power Supply For Lock- 1, Max. 12 V 1 A
  • Debugging Port- 1

Door Station/General

  • Button- 1
  • Installation- Flush mounting
  • Protective Level- IP65, IK7
  • Working Temperature- -30 °C to +60 °C (-22 °F to 140 °F)
  • Working Humidity- 10% to 90%
  • Dimensions- 150 mm × 82 mm × 23.5 mm (5.91″ × 3.23″ × 0.93″)
  • Power Supply- 48 VDC, 0.5 A
  • Application Environment- Outdoor
  • Power Consumption- ≤ 12 W

Indoor Station/System Parameters

  • Operation System- Embedded analog operation system

Indoor Station/Display Parameters

  • Size- 7-inch TFT non-touch screen
  • Operation Method- 6 touch buttons
  • Type- Colorful TFT screen
  • Resolution- 1024 × 600

Indoor Station/Audio Parameters

  • Audio Input- Built-in omnidirectional microphone
  • Audio Output- Built-in loudspeaker (More than 80 dB within 20 cm)
  • Audio Quality- /
  • Volume- Adjustable with touch-button
  • Audio Compression Rate- /

Indoor Station/Device Interfaces

  • Two-Wire- 3

Indoor Station/General

  • Power Supply- 48 VDC
  • Power Consumption- ≤ 5 W
  • Working Temperature- -10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity- 10% to 90%
  • Dimensions (W × H × D)- 187 mm × 137 mm × 25.4 mm (7.36″ × 5.39″ × 1.00″)
  • Installation- Surface mounting
  • Button- 6
