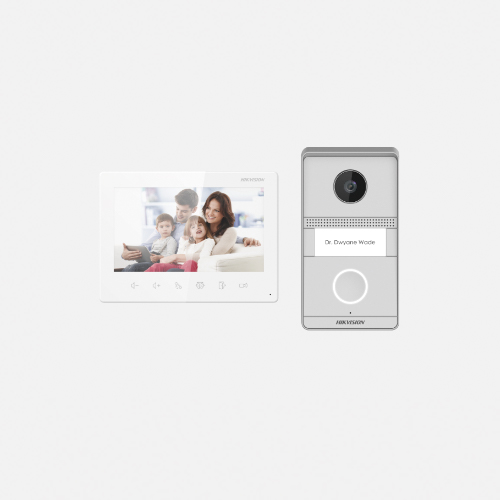

HIKVISION DS-KIS101-P/Surface 2-Wire Analog Intercom Kit
2-Wire Analog Intercom Kit
- 2-Wire plug & play, easy, cost-efficient
- Receive video call and unlock via indoor station
- 7-inch TFT screen with 1024*600 resolution
- 2MP HD colorful camera
- View in color, even in darkness
- One-touch calling with nametag
- IP65 water resistant, preventing from water ingress
- IK7 vandal resistant
- 2 lock relays, power supply for one electric lock (Up to 12V 1A)
Door Station/System Parameters
- Operation System- Embedded analog operation system
Door Station/Video Parameters
- Supplement Light- White light supplement
- Lens- Low Illumination 2 MP HD IR Camera
- FOV- Horizontal: 100°, Vertical: 69°
- WDR- Support
- Resolution- 2MP
Door Station/Audio Parameters
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker (More than 80 dB within 20 cm)
- Volume Adjustment- Adjustable with screwdriver
Door Station/Device Interfaces
- Alarm Input- 4
- Two-Wire- 1
- TAMPER- 1
- Exit Button- 2
- Lock Control- 2, lock duration can be adjusted via DIP switch (Max. 7 s)
- Door Contact Input- 2
- Power Supply For Lock- 1, Max. 12 V 1 A
- Debugging Port- 1
Door Station/General
- Button- 1
- Installation- Surface mounting with protective shield
- Protective Level- IP65, IK7
- Working Temperature- -30 °C to +60 °C (-22 °F to 140 °F)
- Working Humidity- 10% to 90%
- Dimensions- 150 mm × 82 mm × 23.5 mm (5.91″ × 3.23″ × 0.93″)
- Power Supply- 48 VDC, 0.5 A
- Application Environment- Outdoor
- Power Consumption- ≤ 12 W
Indoor Station/System Parameters
- Operation System- Embedded analog operation system
Indoor Station/Display Parameters
- Size- 7-inch TFT non-touch screen
- Operation Method- 6 touch buttons
- Type- Colorful TFT screen
- Resolution- 1024 × 600
Indoor Station/Audio Parameters
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker (More than 80 dB within 20 cm)
- Audio Quality- /
- Volume- Adjustable via touch-button
- Audio Compression Rate- /
Indoor Station/Device Interfaces
Indoor Station/General
- Power Supply- 48 VDC
- Power Consumption- ≤ 5 W
- Working Temperature- -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity- 10% to 90%
- Dimensions (W × H × D)- 187 mm × 137 mm × 25.4 mm (7.36″ × 5.39″ × 1.00″)
- Installation- Surface mounting
- Button- 6
