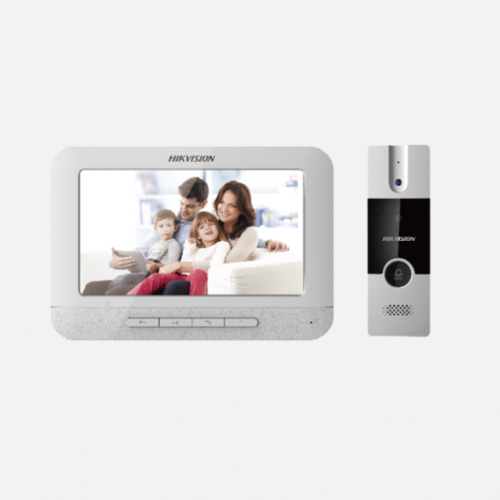

HIKVISION DS-KIS202 Villa Analog Kit

Villa Analog Kit

• Analog Kit for villa or house, only one call button
• Kit including DS-KB2411-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories
• European power supply adaptor included (please mark for other standards when you order)

Door Station/Video Parameters

• Camera- 1/4″ CMOS
• Resolution- 720 × 576
• Video Frame Rate- PAL: 25 fps

Door Station/Audio Parameters

• Audio Input- Built-in Omnidirectional Microphone
• Audio Output- Built-in Loudspeaker
• Audio Quality- Noise Suppression and Echo Cancellation

Door Station/Device Interfaces

• Four-Wire Interface- 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)
• IO Output- 1 Relay Output

Door Station/General

• Material- Aluminum Alloy
• Power Consumption- Max. 3W
• Working Temperature- -30° C to +60° C (-22° F to 140° F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″)

Indoor Station/Display Parameters

• Display Screen- 7-Inch Colorful TFT LCD
• Display Resolution- 800 × 480
• Operation Method- Physical Button

Indoor Station/Audio Parameters

• Audio Input- Built-in Omnidirectional Microphone
• Audio Output- Built-in Loudspeaker
• Audio Quality- Noise Suppression and Echo Cancellation

Indoor Station/Device Interfaces

• Four-Wire Interface- 4 Four-Wire Interfaces, 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

Indoor Station/General

• Power Supply- 12 VDC
• Power Consumption- ≤5 W
• Working Temperature- -10° C to + 55° C (14° F to 131° F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)
