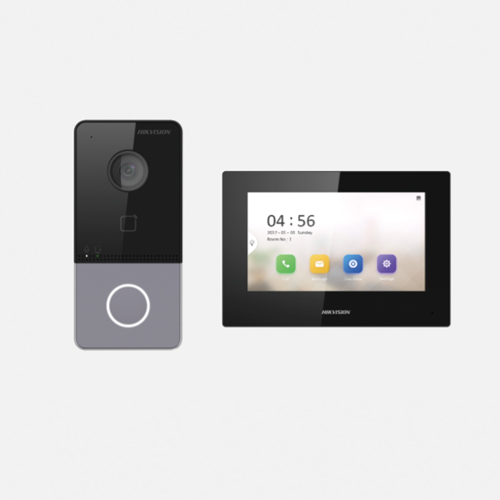

HIKVISION DS-KIS605-P IP Intercom Kit

IP Intercom Kit

• Indoor Station：
• User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Views live video of door stations and linked cameras
• Villa Door Station：
• Standard PoE
• 2 MP HD Camera
• Noise suppression and echo cancellation
• Low illumination
• Access control functions
• Tamper-proof
• Configuration remotely via Web
• 2.4 GHz Wi-Fi

Door Station/System Parameters

• Operation System- Embedded Linux operation system
• Operation Mode- Single-button
• Flash- 16 M, 32 M
• RAM- 256 M

Door Station/Video Parameters

• Camera- 2MP HD camera
• Resolution- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576
• Night Vision- Low illumination IR supplement mode:3 m
• WDR- True WDR
• Field Of View- Horizontal: 129° Vertical: 75°
• Video Compression Standard- H.264
• Stream- Main stream: 1080p@30fps, 720p@25fps, Sub stream: D1@25fps
• Motion Detection- Support
• BLC- Support
• DNR- Support
• Anti-Flicker Frequency- 50 Hz, 60 Hz

Door Station/Audio Parameters

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Quality- Noise suppression and echo cancellation
• Audio Compression Standard- G.711 U
• Audio Compression Rate- 64 Kbps
• Audio Intercom- Two-way audio communication

Door Station/Network Parameters

• Network Protocol- TCP/IP, RSTP
• Wired Network- 10/100 Mbps Ethernet

Door Station/Device Interfaces

• RS-485- 1
• Alarm Input- 4
• Debugging Port- 1
• Grounding- 1
• TAMPER Switch- 1

Door Station/General

• Power Consumption-＜ 10 W
• Working Temperature- -40° C to +53° C(-40° F to 127.4° F)
• Working Humidity- 10% to 95%
• Dimension- 138 mm × 65 mm × 27 mm
• Installation- Surface mounting
• Protection Level- IP65
• Button- 1
• Indicator- 2
• Power Supply- IEEE802.3af, standard PoE, 12 VDC

Indoor Station/System Parameters

• Operation System- Embedded RTOS operation system
• Memory- 64 MB
• Flash- 16 MB

Indoor Station/Display Parameters

• Display Screen- 7-inch TFT LCD
• Display Resolution- 1024 × 600
• Operation Method- Capactive touch

Indoor Station/Audio Parameters

• Audio Input- Build-in omnidirectonal microphone
• Audio Output- Built-in loudspeaker
• Audio Quality- Noise suppression and echo cancellation
• Audio Compression Standard- G.711U, G.711A
• Audio Compression Rate- 64 Kbps

Indoor Station/Network Parameters

• Wired Network- 10/100 Mbps self-adaptive
• Protocol- TCP/IP, SIP, RTSP

Indoor Station/Device Interfaces

• Network Interface- RJ45, standard PoE for power supply
• RS-485- 1(Reserved)
• Alarm Input- 8 zones
• Relay Output- 2(Reserved)
• Power Input- 2 pins

Indoor Station/General

• Power Supply- 12 VDC or standard PoE
• Power Consumption- ≤ 6 W
• Working Temperature- -10 °C to 50 °C (-14 °F to 122 °F)
• Working Humidity- 0% to 90%
• Dimensions (W × H × D)- 200 mm × 140 mm × 15.1 mm (7.87″ × 5.51″ × 0.59″)
• Installation- Wall mounting,683 g (with packaging), 355 g (without packaging)
