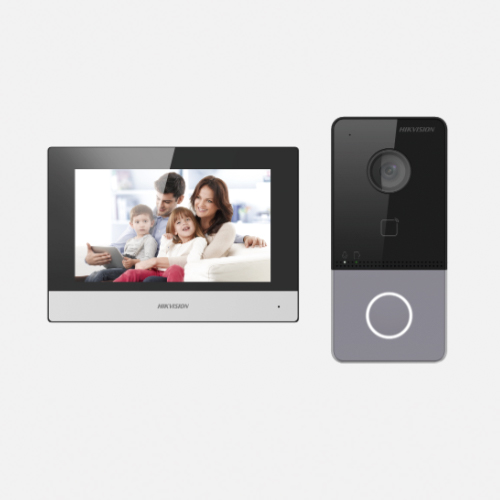

HIKVISION DS-KIS603 IP Video Intercom Kit

IP Video Intercom Kit

• IP video intercom kit for villa or house, only one call button;
• DS-KV6113-WPE1 x1;
• DS-KH6320-WTE1 x1;
• PSU x2;

Door Station/System Parameters

• Operation System- Embedded Linux operation system
• Flash- 32 MB
• RAM- 128 MB

Door Station/Video Parameters

• Camera- 2MP HD camera
• Night Vision- Low illumination IR supplement mode:3 m
• Backlight Compensation- Support
• Digital Noise Reduction- Support
• WDR- True WDR
• Field Of View- Horizontal: 129° Vertical: 75°
• Video Compression Standard- H.264
• Stream- Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion Detection- Support
• Flash-Avoid Frequency- 50 Hz, 60 Hz

Door Station/Audio Parameters

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Quality- Noise suppression and echo cancellation
• Audio Compression Standard- G.711 U
• Audio Compression Rate- 64 Kbps
• Audio Intercom- Two-way audio communication

Door Station/Network Parameters

• Network Protocol- TCP/IP, RSTP
• Wired Network- 10/100 Mbps Ethernet

Door Station/Device Interfaces

• RS-485- 1
• Alarm Input- 4
• Debugging Port- 1
• Grounding- 1
• TAMPER Switch- 1

Door Station/General

• Power Consumption-＜ 10 W
• Working Temperaturee- -40° C to 53° C(-40° F to 127.4° F)
• Working Humidity- 10% to 95%
• Dimension- 138 mm × 65 mm × 27 mm
• Installation- Surface mounting
• Protection Level- IP65
• Indicator- 2
• Power Supply- IEEE802.3af, standard PoE, 12 VDC

Indoor Station/System Parameters

• Operation System- Embedded Linux operation system
• Memory- 128 MB
• Flash- 32 MB

Indoor Station/Display Parameters

• Display Screen- 7-inch colorful TFT screen
• Display Resolution- 1024 × 600
• Operation Method- Capacitive touch screen

Indoor Station/Audio Parameters

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Quality- Noise suppression and echo cancellation
• Audio Compression Standard- G.711 U
• Audio Compression Rate- 64 Kbps

Indoor Station/Network Parameters

• Wired Network- 10/100 Mbps self-adaptive
• Wireless Network- Wi-Fi 802.11 b/g/n
• Protocol- TCP/IP, SIP, RTSP
• RS-485- 1 RJ-45 10/100 Mbps self-adaptive

Indoor Station/Device Interfaces

• RS-485- 1
• Alarm Input- 8-ch alarm inputs
• Relay Output- 2
• TF Card- Max to 32 G, SD 2.0 or lower version

Indoor Station/General

• Power Consumption- ≤ 6 W
• Working Temperature-‘-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 200 mm × 140 mm × 15.1 mm (7.9″ ×5.5 × 0.6\”)”
