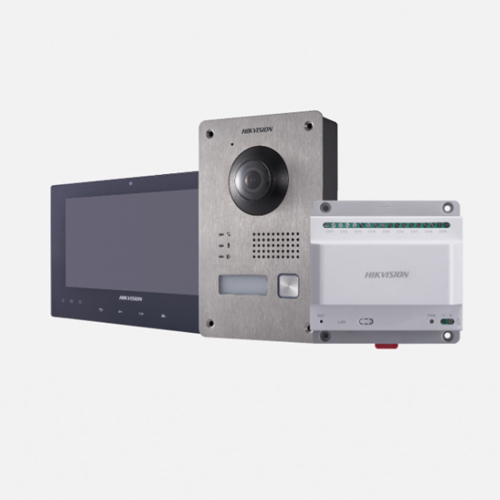

HIKVISION DS-KIS701 Villa Two Wire Kit

Villa Two Wire Kit

• 2-wire digital IP video intercom kit for villa or house, only one call button
• DS-KV8103-IME2 x1
• DS-KH8340-TCE2 x1
• DS-KAD709 x1
• European power supply adaptor included (please mark for other standards when you order)

Door Station/System Parameters

• Processor- High-Performance Embedded SOC Processor
• Operation System- Embedded Linux Operation System

Door Station/Video Parameters

• Camera- CMOS Low Illumination 2 MP HD Colorful 155° Fisheye Camera
• Resolution- 1920 × 1080
• Video Frame Rate- NTST: 30 fps, PAL: 25 fps
• Video Compression Standard- H.264

Door Station/Audio Parameters

• Audio Input- Built-in Omnidirectional Microphone
• Audio Output- Built-in Loudspeaker
• Audio Quality- Noise Suppression and Echo Cancellation
• Audio Compression Standard- G.711 U
• Audio Compression Rate- 64 Kbps

Door Station/Network Parameters

• Ethernet- 10/100 Mbps Self-Adaptive Ethernet
• Network Protocol- TCP/IP, RTSP

Door Station/Device Interfaces

• IO Output- 1-ch 12 VDC Output
• RS-485- 1 RS-485 Half-Duplex Port
• Alarm Input- Door Magnetic Alarm, Tampering Alarm
• Network Interface- Two-Wire Interface
• I/O Input- 2

Door Station/General

• Material- Stainless Steel
• Power Consumption- ≤12 W
• Working Temperature- -30 °C to +60 °C (-22 °F to 140 °F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 169 mm x 110 mm x 44 mm (6.65″ x 4.33″ x 1.73″)
• Protection Level- IP 65
• Power Input- Powered by DS-KAD709

Indoor Station/System Parameters

• Processor- High-Performance Embedded SOC Processor

Indoor Station/Display Parameters

• Display Screen- 7-inch Colorful TFT LCD
• Display Resolution- 1024 × 600
• Operation Method- Capacitive Touch Screen, Touch Button
• Operation Interface- Flattened UI Operation Interface

Indoor Station/Video Parameter

• Video Compression Standard- H.264

Indoor Station/Audio Parameters

• Audio Input- Built-in Omnidirectional Microphone
• Audio Output- Built-in Loudspeaker
• Audio Quality- Noise Suppression and Echo Cancellation

Indoor Station/Device Interfaces

• Network Interface- Two-Wire Interface
• RS-485- 1, Half-duplex Interface
• Relay Output- 1

Indoor Station/General

• Power Supply- Powered by DS-KAD709
• Power Consumption- Max. 10 W
• Working Temperature- -10 ° C to +55 ° C (14 ° F to 131 ° F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 196 mm × 133 mm × 25.75 mm (7.72″ × 5.24″ × 1.01″)
• Installation- Wall Mounting

Video Audio Distributor/Interfaces

• Interface Number- 1, 10/100M Interface
• Interface Type- 9-ch 2-wire Interface

Video Audio Distributor/General

• Power Supply- 24 VDC
• Power Consumption- 60 W
• Working Temperature- -10 ℃ to 55 ℃
• Working Humidity- 10% to 90%, No Condensing
• Dimension- 112.2 mm x 111 mm x 66 mm (4.42″ × 4.37″ × 2.60″)
