HIKVISION DS-KIS702-P(B) Two Wire IP Bundle

分類: 標籤:

描述

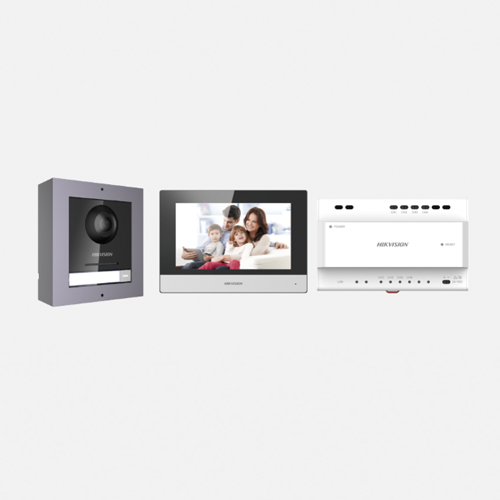

HIKVISION DS-KIS702 Villa Two Wire Kit

Villa Two Wire Kit

  • 2-wire digital IP video intercom kit for villa or house, only one call button
  • DS-KD8003-IME2/Surface x1
  • DS-KH6320-WTE2 x1
  • DS-KAD704 x1
  • DS-KAW30-2N x1
  • 16GB TF card x1

Door Station/System Parameters

  • Processor- Embedded microcontroller
  • Operation System- Embedded Linux operation system
  • Operation Mode- One touch key

Door Station/Video Parameters

  • Camera- 2MP super definition camera
  • Resolution- Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
  • Night Vision- Support low light and IR light supplement mode
  • Backlight Compensation- Support
  • Digital Noise Reduction- Support
  • WDR- True WDR
  • Field Of View- Horizontal 180°, vertical 96°
  • Video Compression Standard- H.264
  • Stream- Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1
  • Motion Detection- Support
  • Flash-Avoid Frequency- 50 Hz, 60 Hz

Door Station/Audio Parameters

  • Audio Input- Built-in omnidirectional microphone
  • Audio Output- Loudspeaker, 20 cm sound effect > 80 db
  • Audio Quality- Noise suppression and echo cancellation
  • Audio Compression Standard- G.711 U
  • Audio Compression Rate- 64 Kbps
  • Audio Intercom- Full-duplex two-way audio intercom

Door Station/Device Interfaces

  • RS-485- 1 (inter-module connection)
  • Alarm Input- 1

Door Station/General

  • Working Temperature- -40 °C to 60 °C (-40 °F to 140 °F)
  • Working Humidity- 10% to 90%
  • Dimension- 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93\” × 1.73)”
  • Installation- Wall mounting
  • Protection Level- IP 65
  • Button- 1
  • Power Input- 24 VDC two-wire power supply (< 16 W)

Indoor Station/System Parameters

  • Operation System- Embedded Linux operation system
  • Processor Basic Frequency- 1 GHz
  • Memory- 128 MB
  • Flash- 16 MB

Indoor Station/Display Parameters

  • Display Screen- 7-inch TFT LCD
  • Display Resolution- 1024 × 600
  • Operation Method- Capacitive touch

Indoor Station/Audio Parameters

  • Audio Input- Built-in omnidirectional microphone
  • Audio Output- Built-in loudspeaker
  • Audio Quality- Noise suppression and echo cancellation
  • Volume- Local or software control
  • Audio Compression Standard- G.711 U, G.711 A
  • Audio Compression Rate- 64 Kbps

Indoor Station/Network Parameters

  • Wired Network- Two-wire network
  • Wireless Network- Wi-Fi 802.11b/g/n
  • Protocol- TCP/IP, SIP, RTSP

Indoor Station/Device Interfaces

  • Network Interface- Two-wire interface
  • RS-485- 1
  • Alarm Input- 8 zones alarm input
  • Relay Output- 2
  • TF Card- Support, Max. 32 GB

Indoor Station/General

  • Power Supply- Two-wire
  • Power Consumption- ≤ 6 W
  • Working Temperature- -10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity- 10% to 90%
  • Dimensions (W × H × D)- 200 mm × 140 mm × 15.1 mm (7.87″ × 5.51 × 0.59\”)”

Video Audio Distributor/Interfaces

  • Network Interface- 1 RJ45
  • Two-Wire Interface- 4
  • Signal Indicator- 4
  • Power Indicator- 1
  • Reset- 1

Video Audio Distributor/General

  • Power Supply- Two-wire mode
  • Power Consumption- CH1 to CH3<6 W, CH4<8 W
  • Working Temperature- -10 °C to +50 °C (14 °F to +122 °F)
  • Working Humidity- 10% to 90%
  • Digital Noise Reduction- Support
  • Dimension- 143.7mm × 92.4mm × 65.9mm (5.66″ × 3.64 × 2.59\”)”
