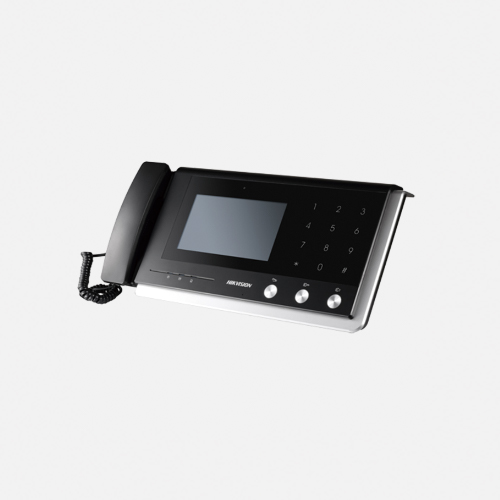

HIKVISION DS-KM8301 KM8 Series Main Station

Category: Tag:

Description

HIKVISION DS-KM8301 KM8 Series Main Station

KM8 Series Main Station

  • IP Master station
  • CMOS 0.3 MP, 7-Inch Touch Screen, Touch Key, Physical Button
  • 2 RS-485 Half-Duplex Port
  • 2 On-Off Output, 2 Relay Output, 4 On-Off Input, 12 VDC
  • Unlock door, monitor door station and IP cameras, Receive alarm messages

System Parameters

  • Processor- High-Performance Embedded SOC Processor
  • Operation System- Embedded Linux Operation System

Network Parameters

  • Ethernet- 10/100/1000 Mbps Self-Adaptive Ethernet
  • Network Protocol- TCP/IP, RTSP

Device Interfaces

  • Network Interface- 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  • I/O Input- 4 On-Off Input
  • I/O Output- 2 On-Off Output, 2 Relay Output
  • RS-485- 2 RS-485 Half-Duplex Port
  • USB- 1 USB Interface for Inserting U-Disk

General

  • Power Supply- 12 VDC
  • Power Consumption- ≤10 W
  • Working Temperature- -10° C to + 55° C (14° F to 131° F)
  • Working Humidity- 10% to 90%
  • Certification- FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)- 436 mm × 215 mm × 67 mm (17.2″ ×8.5″ × 2.6″)
  • Material- Plastic
