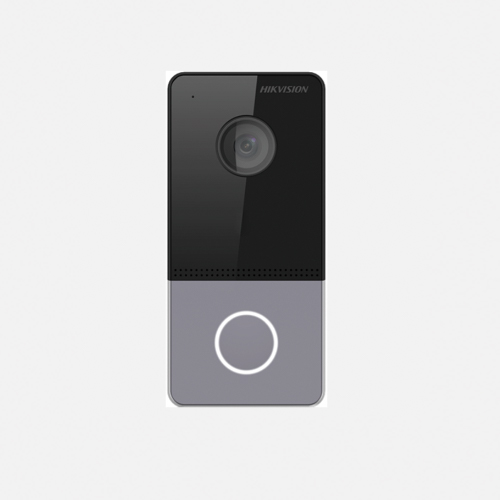

HIKVISION DS-KV6103-PE1(C) Plastic Villa Door Station

Plastic Villa Door Station

• Support web configuration
• Nice industry design, IP65
• 1-ch Indoor station access control
• Noise suppression and echo cancellation
• 2MP HD Camera with IR supplement
• Standard PoE/ 12 VDC

System Parameters

• Operating System- Embedded Linux operation system
• ROM- 32 M
• RAM- 256 M
• CPU- Embedded processor

Video Parameters

• Lens- 1
• Resolution- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576
• FOV- Horizontal: 131° Vertical: 78°
• WDR- True WDR
• Supplement Light- IR supplement
• Video Compression Standard- H.264

Audio Parameters

• Audio Compression Standard- G.711 U
• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Compression Bitrate- 64 Kbps
• Audio Quality- Noise suppression and echo cancellation
• Volume Adjustment- Adjustable

Network Parameters

• Communication Protocol- TCP/IP, RSTP
• Wired Network- 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard- /
• Bluetooth Version- /
• 3G/4G Standard- /

Device Interfaces

• Alarm Input- 4
• Network Interface- 1
• TAMPER- 1
• Exit Button- 1
• RS-485- 0
• USB- 0
• Wiegand- 0
• TF Card- 0
• Alarm Output- 0
• Lock Control- 1
• Door Contact Input- 1
• Power Interface- 1

General

• Button- 1
• Installation- Surface mounting
• Indicator- 200g
• Protective Level- IP65
• Working Temperature- -40° C to +53° C(-40° F to 127.4° F)
• Working Humidity- 10% to 95%
• Dimensions- 138 mm × 65 mm × 27 mm
• Battery- /
• Application Environment- Outdoor
• Power Consumption- ＜ 10 W
• Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
