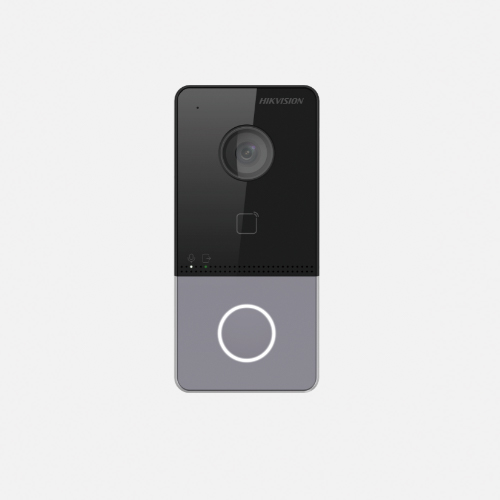

HIKVISION DS-KV6113-PE1 Plastic Villa Door Station

Plastic Villa Door Station

• Standard PoE
• 2 MP HD camera
• Noise suppression and echo cancellation
• Low illumination
• Access control functions

Video Parameters

• Supplement Light- IR supplement
• Lens- 1
• FOV- Horizontal: 129° Vertical: 75°
• Simultaneous Live View- Up to 3 channels
• Pixel- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576

Audio Parameters

• Audio Quality- Noise suppression and echo cancellation

Network Parameters

• Communication Protocol- TCP/IP, RTSP
• Wired Network- 10/100 Mbps self-adaptive Ethernet
• Wi-Fi- /
• Bluetooth- /

Device Interfaces

• Network Interface- 1
• Exit Button- 1
• Lock Control- 1
• Door Contact Input- 1
• Power Interface- 1

General

• Button- 1
• Installation- Surface mounting
• Indicator- 2, 190g
• Protective Level- IP65
• Power Supply Method- IEEE802.3af, standard PoE, 12 VDC
• Working Temperature- -40° C to +55° C(-40° F to 131° F)
• Working Humidity- 10% to 95%
• Dimensions- 138 mm × 65 mm × 27 mm
• Battery- /
• Application Environment- Outdoor
• Power Consumption-＜ 10 W
