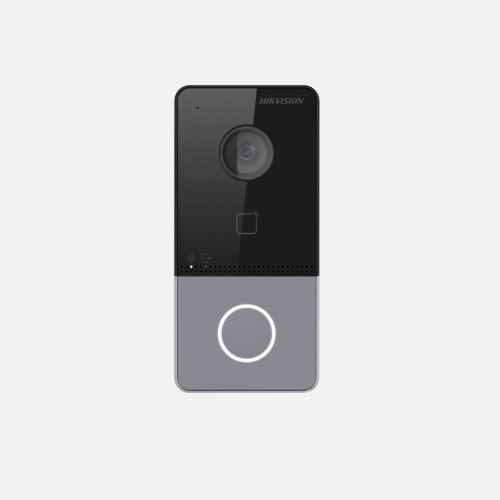

HIKVISION DS-KV6113-WPE1(B) Plastic Villa Door Station with card read & 485 &indicators
Plastic Villa Door Station with card read & 485 &indicators
- Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
- Support web configuration
- Nice industry design, IP65, 2 indicator integrated;
- Internal Mifare card reader, 1-ch Indoor station access control;
- Noise suppression and echo cancellation
- 2MP HD Camera with IR supplement
- Standard PoE/ 12 VDC
System Parameters
- Operating System- Embedded Linux operation system
- ROM- 16 M, 32 M
- RAM- 256 M
- CPU- Embedded MCU Processor
Video Parameters
- Lens- 1
- Resolution- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576
- FOV- Horizontal: 129° Vertical: 75°
- WDR- True WDR
- Supplement Light- IR supplement
- Video Compression Standard- H.264
Audio Parameters
- Audio Compression Standard- G.711 U
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker
- Audio Compression Bitrate- 64 Kbps
- Audio Quality- Noise suppression and echo cancellation
- Volume Adjustment- Adjustable
Capacity
- User Capacity- /
- Face Capacity- /
- Card Capacity- /
- Linked Network Camera Capacity- 1
Network Parameters
- Communication Protocol- TCP/IP, RTSP
- Wired Network- 10/100 Mbps self-adaptive Ethernet
- Wi-Fi Standard- Support
- Bluetooth Version- Not supported.
- 3G/4G Standard- /
- Received Frequency- 2.4 to 2.4835GHz
- Transmitted Frequency- 2.4 to 2.4835 GHz
- Bandwidth- 20 to 40 MHz
- Frequency Power- 802.11b:16dBm +/- 1.5dBm, 802.11g:15dBm +/- 1.5dBm, 802.11n(ht20):14dBm +/- 1.5dBm, 802.11n(ht40):12dBm +/- 1.5dBm
Device Interfaces
- Alarm Input- 4
- Network Interface- 1
- TAMPER- 1
- Exit Button- 1
- RS-485- 1
- USB- 0
- Wiegand- 0
- TF Card- 0
- Alarm Output- 0
- Lock Control- 1
- Door Contact Input- 1
- Power Interface- 1
Performances
- Multi-Factor Authentication- 2000
General
- Button- 1
- Installation- Surface mounting, 265g
- Protective Level- IP65
- Working Temperature- -40° C to +55° C(-40° F to 131° F)
- Working Humidity- 10% to 95%
- Dimensions- 138 mm × 65 mm × 27 mm
- Indicator- 2
- Battery- /
- Application Environment- Outdoor
- Power Consumption-< 10 W
- Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
