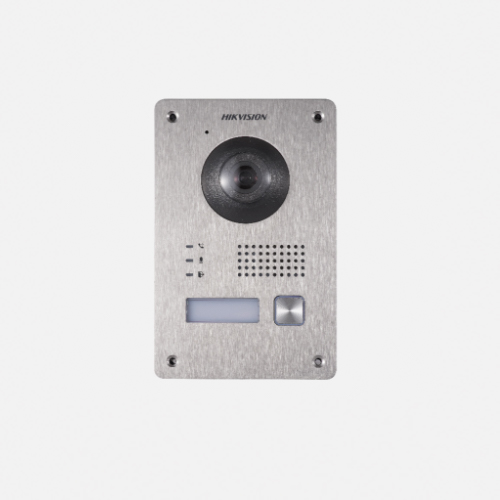

HIKVISION DS-KV8103-IME2 Two Wire Door Station

Category: Tag:

Description

HIKVISION DS-KV8103-IME2 Two Wire Door Station

Two Wire Door Station

  • 2-wire IP villa door station
  • 2MP fisheye camera, IR Supplement
  • One-touch call, 1 door lock control, RS-485
  • IP65, Vandal-resistant Metal
  • Powered by DS-KAD709

Display Parameters

  • Size- /
  • Operation Method- /
  • Type- /

Video Parameters

  • Supplement Light- Low illumination IR supplement mode:3 m
  • Lens- 2MP HD camera
  • FOV- Horizontal: 144° Vertical: 95°
  • Pixel- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576

Audio Parameters

  • Audio Quality- Noise suppression and echo cancellation

Network Parameters

  • Communication Protocol- TCP/IP, RSTP
  • Wired Network- Support
  • Wi-Fi- /
  • Bluetooth- /

Device Interfaces

  • Network Interface- 1 10/100 Mbps self-adaptive Ethernet
  • Exit Button- 1
  • Lock Control- 1
  • Door Contact Input- 1
  • Power Interface- 1

General

  • Button- 1
  • Installation- Surface mounting, flush mounting
  • Indicator- 3, 476 g
  • Protective Level- IP65
  • Power Supply Method- From indoor station
  • Working Temperature- -40° C to +60° C(-40° F to 140° F)
  • Working Humidity- 10% to 95%
  • Dimensions- 169 × 110 × 31 mm (6.54” × 4.33” × 1.22”)
  • Battery- /
  • Power Supply- From indoor station
  • Application Environment- Outdoor
  • Power Consumption- < 10 W
