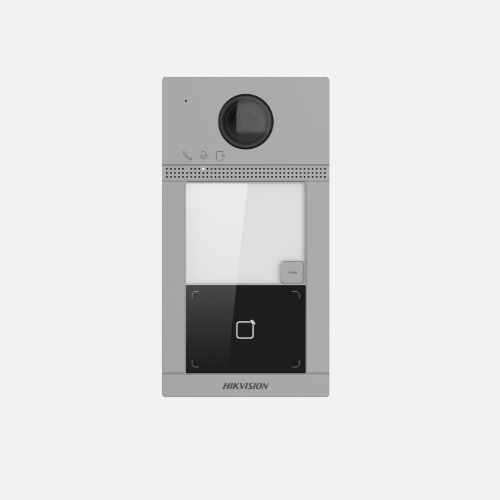

HIKVISION DS-KD8103-E6 1 Button Metal Villa Door Station

1 Button Metal Villa Door Station

• Support Wifi, convenient setting up and no wiring required
• Support web configuration
• Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
• Internal Mifare card reader, 1-ch Indoor station access control
• Noise suppression and echo cancellation
• 2MP HD Camera with IR supplement
• Standard PoE/12 VDC

Video Parameters

• Supplement Light- IR supplement
• Lens- 1
• FOV- Horizontal: 129° Vertical: 75°
• Simultaneous Live View- Up to 3 channels
• Pixel- Main stream : 1920 × 1080, Sub stream : 720 × 480

Audio Parameters

• Audio Quality- Noise suppression and echo cancellation

Network Parameters

• Communication Protocol- TCP/IP, RTSP
• Wired Network- 10/100 Mbps self-adaptive Ethernet
• Wi-Fi- /
• Bluetooth- /

Device Interfaces

• Network Interface- 1
• Exit Button- 2
• Lock Control- 2
• Door Contact Input- 2
• Power Interface- 1

General

• Button- 4 buttons
• Installation- Surface mounting
• Indicator- 3, 385g
• Protective Level- IP65, IK08
• Power Supply Method- IEEE802.3af, standard PoE, 12 VDC
• Working Temperature- -40° C to +55° C(-40° F to 131° F)
• Working Humidity- 10% to 95%
• Dimensions- 174 mm × 91 mm × 29 mm
• Battery- /
• Application Environment- Outdoor
• Power Consumption- ＜ 10 W
