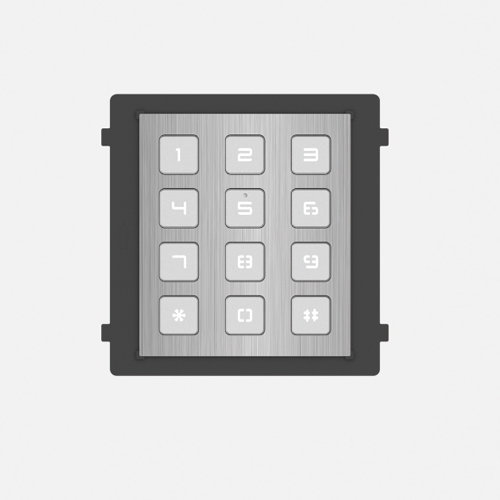

HIKVISION DS-KD-KP/S KD8 Series Pro Modular Door Station

KD8 Series Pro Modular Door Station

• Modular door station Keypad module, needs mouting bracket
• Input pin code to open door, call indoor station
• Backlight compensation
• Easy to and extend

System Parameters

• Operating System- Embedded Linux operation system
• ROM- /
• RAM- /
• CPU- Embedded MCU Processor

Network Parameters

• Communication Protocol- TCP/IP, RTSP
• Wired Network- 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard- /
• Bluetooth Version- /
• 3G/4G Standard- /

Device Interfaces

• RS-485- 2
• USB- /

General

• Button- 12
• Installation- Flush mounting, surface mounting
• Indicator- 438 g (with packaging), 190 g (without packaging)
• Protective Level- IP65, IK07
• Working Temperature- -40° C to +55° C(-40° F to 131° F)
• Working Humidity- 10% to 95%
• Dimensions- 98.2 mm × 100.2 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
• Battery- /
• Power Supply- 12 VDC (powered for other module)
• Application Environment- Outdoor
• Power Consumption- 1 W
