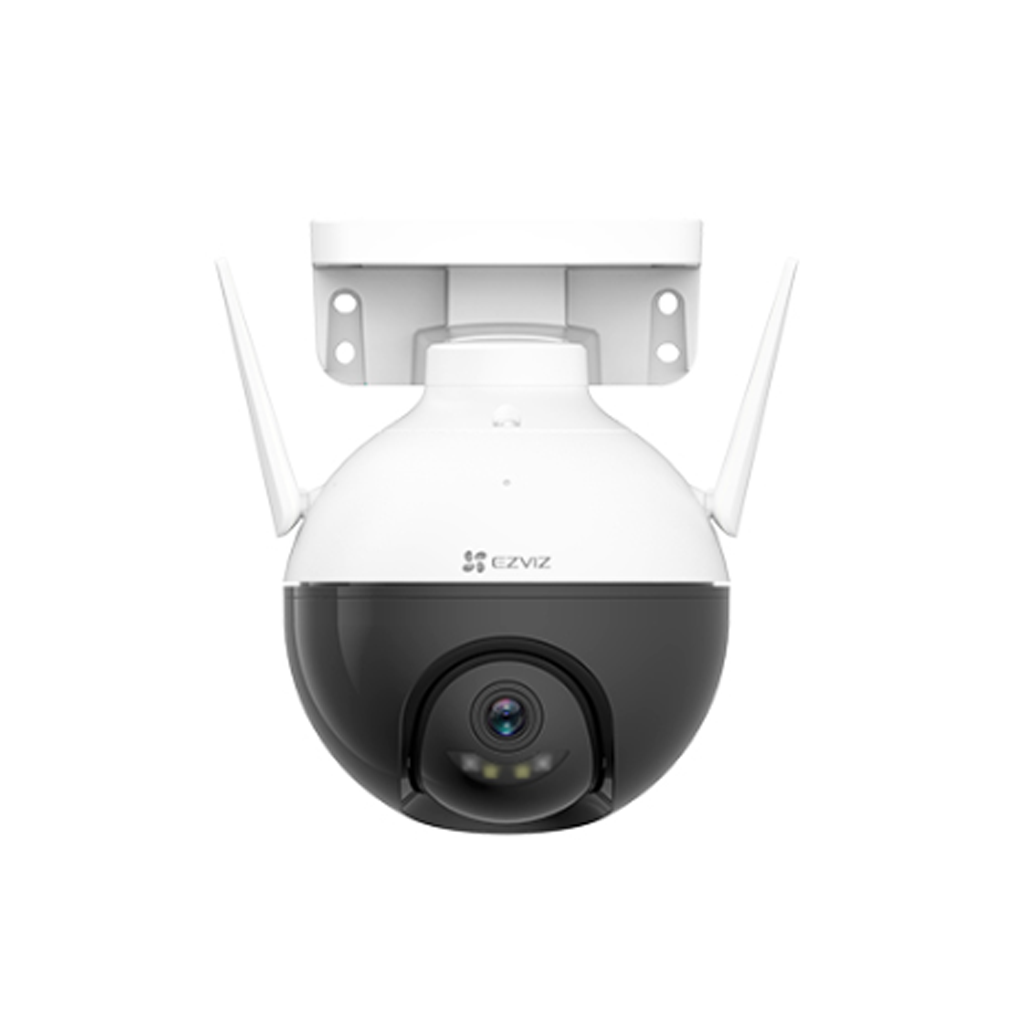

EZVIZ CS-C8W (4MP,W1)
2K Pan & Tilt Wi-Fi Camera
Specification
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle: 55° (Horizontal), 66° (Diagonal) |
| PT Angle | Pan: 352°, Tilt: 95° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Black & White Night | 30 m / 98 ft. |
| Video & Audio | |
| Max Resolution | 2560 × 1440 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports Micro SD card (Up to 256 GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| Function | |
| Smart Alarm | AI-powered human shape detection |
| Customized Alert Area | Supports |
| Audio | Supports two-way talk |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30 °C to 60 °C ( -22 °F to 140 °F ), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 6W |
| Dimensions | 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) |
| Packaging Dimensions | 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) |
| Weight (With Package) | 885 g (31.22 oz) |
| Net Weight | 510 g (17.99 oz) |
