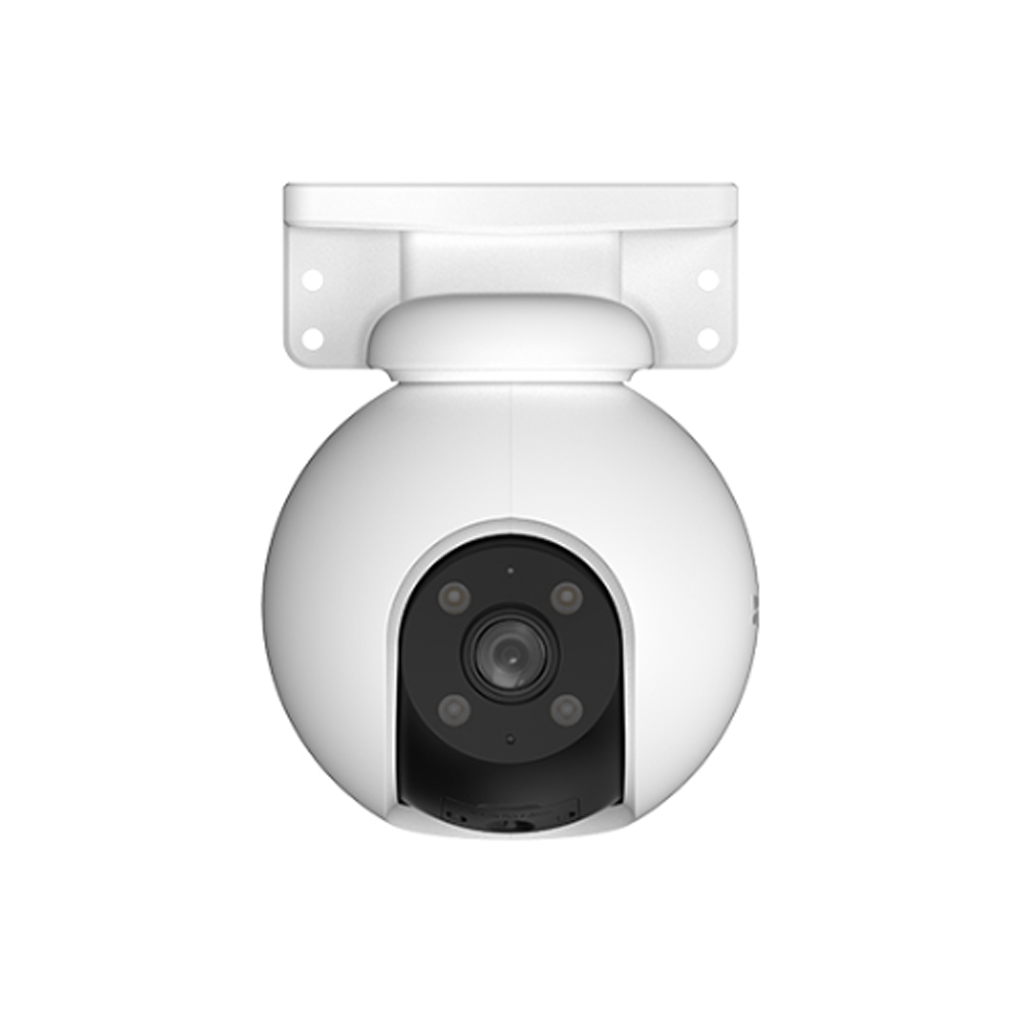

EZVIZ CS-H8-R100-1J5WKFL
Pan & Tilt Wi-Fi Camera
Specification
| Camera | |
| Image Sensor | Dual-1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, Viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, Viewing angle:28° (Vertica), 54° (Horizontal), 62° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision Distance | Up to 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2880 × 1620 |
| Frame Rate | Max. 15fps, self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD+; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 4 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps,11g :54Mbps,11n :72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports Micro SD card (Up to 512GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Functions | |
| Smart Alarm | AI Powered Human / Vehicle Detection / Waving-Hand Recognition &Control |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 6W |
| Dimensions | 116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch) |
| Packaging Dimensions | 187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch) |
| Weight | Net Weight: 592 g (20.88 oz) With Package: 943 g (33.26 oz) For EU Standard Version |
