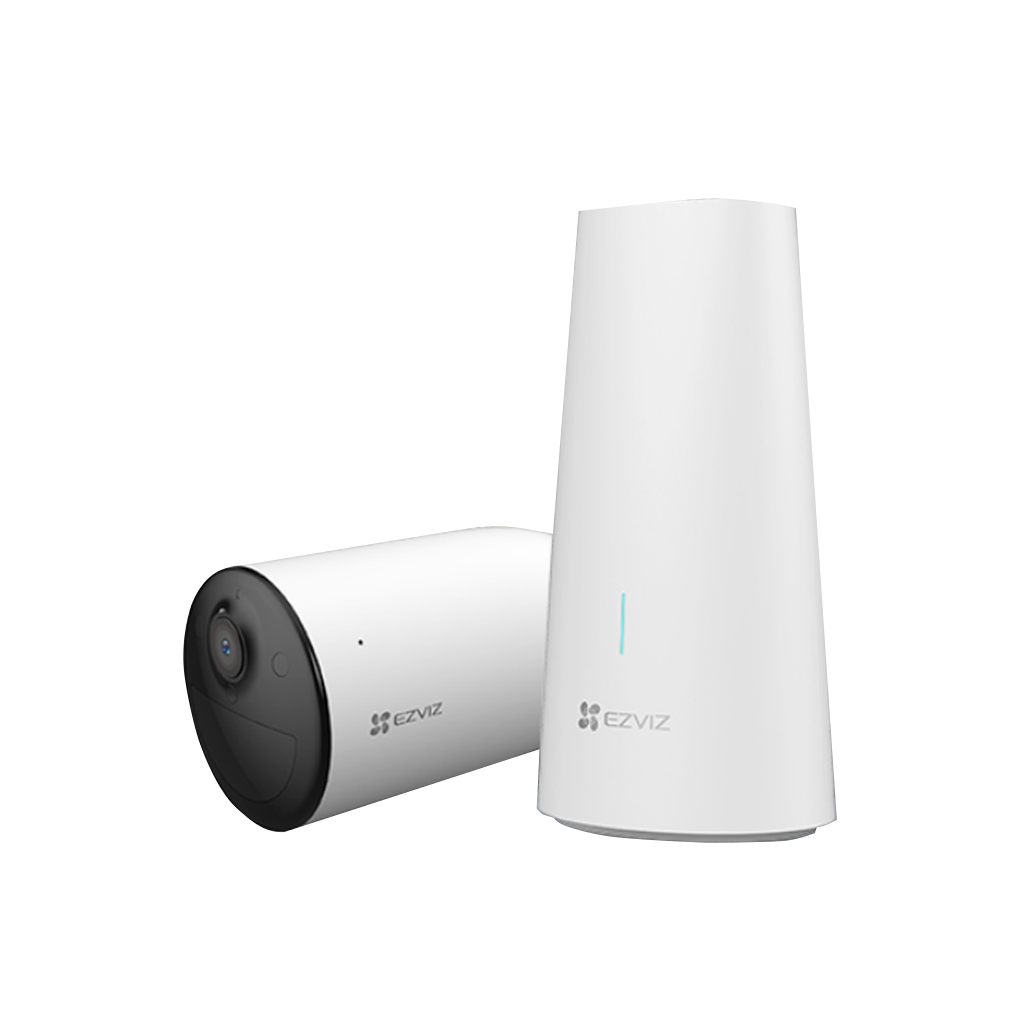

EZVIZ CS-HB3-B1
Battery-Powered 1-Camera Kit
Specification
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @ F2.0 Viewing angle: 131° (Diagonal), 110° (Horizontal), 58° (Vertical) |
| Battery Capacity | 5200 mAh |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | IR Distance: 15m(50 ft), Color Night Vision Distance: 15m |
| Video & Audio | |
| Max. Resolution | 2K / 3 MP, 2304 × 1296 pixels |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD, Hi-Def. Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11AH |
| Frequency Range | 904 M-928 M (US), 865 M-867 M (EU) |
| Channel Bandwidth | 8 M (US), 2 M (EU) |
| Security | 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Wi-Fi HaLow Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | Smart Human Motion Detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General | |
| Operating Conditions | -20° to 45° C (-4° to 113° F ) Humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Package Dimensions | 249 × 199 × 99 mm (9.80 × 7.83 × 7.83 inch) |
| Weight (Camera) | 230 g (8.11 oz) |
| Weight (Base) | 208 g (7.34 oz) |
| Weight (With Package) | 1,010 g (35.63 oz) |
| Power | |
| Power Supply | Camera: DC 5V / 2A Base: DC 12V / 1A |
| Power Consumption | Max. 10W |
