描述
Genetec Streamvault SVW-300E 是預載 Genetec Security Center 的保安監控工作站，可接駁最多 4 個顯示屏，按原廠資料可同時顯示最多 45 路高解像度影像，以 Windows 11 IoT 運行。香港防盜為安裝商及經銷商，規格以原廠為準。

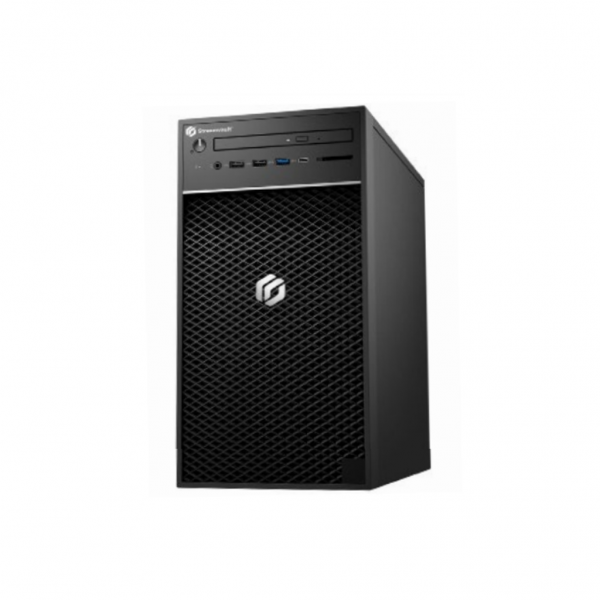

Genetec Streamvault SVW-300E
Security workstation
Key features
- Turnkey workstation with Genetec™ Security Center pre-installed
- Connect up to 4 monitors
- Display up to 45 full high-resolution video streams
- Machine learning endpoint protection
Technical specifications
OS
Windows 11 IoT
Processor
SVW-305E-SF1: Core i7-12700 or better
Passmark: 31,115
SVW-305E-T3: Core i7-12700k or better
Passmark: 34,784
Graphics card
SF1-S1000: 1x NVIDIA Quadro T1000
SF1-S2000: 1x NVIDIA Quadro RTX A2000
T3-S2000: 1x NVIDIA Quadro RTX A2000
T3-S4000: 1x NVIDIA Quadro RTX A4000
Display
SF1-S1000/S2000: 4x Mini-DisplayPort
T3-S2000: 4x Mini-DisplayPort
T3-S4000: 4x DisplayPort 1.4
Memory
16 GB DDR5
Ethernet
1GbE RJ45 Ports
OS drive
1x 512GB SSD
Peripherals
SF1:
Front: 1x USB 3.2 Gen1
1x USB 3.2 Type-C
2x USB 2.0
Rear: 1x USB 3.2 Gen2
3x USB 3.2 Gen1
2x USB 2.0
T3:
Front: 2x USB 3.2 Gen1
2x USB 3.2 Type-C
Rear: 2x USB 3.2 Gen2
2x USB 3.2 Type-C
2x USB 2.0
Mechanical and environmental
Power supply
SF1: 300W (100-240 VAC)
T3: 500W (100-240 VAC)
Operating temperature
SF1: 32°F to 140°F (0°C to 60°C)
T3: 32°F to 140°F (0°C to 60°C)
Operating humidity
SF1: 5 – 95% (non-condensing)
T3: 5 – 95% (non-condensing)
Dimensions (W x D x H)
SF1: 3.65” x 11.53” x 11.42”
(92.6 mm x 292.8 mm x 290 mm)
T3: 6.81” x 16.54” x 14.68”
(173 mm x 420.2 mm x 372.9 mm)
Max Weight
SF1: 11.86 lbs (5.38 kg)
T3: 36.06 lbs (16.36 kg)
