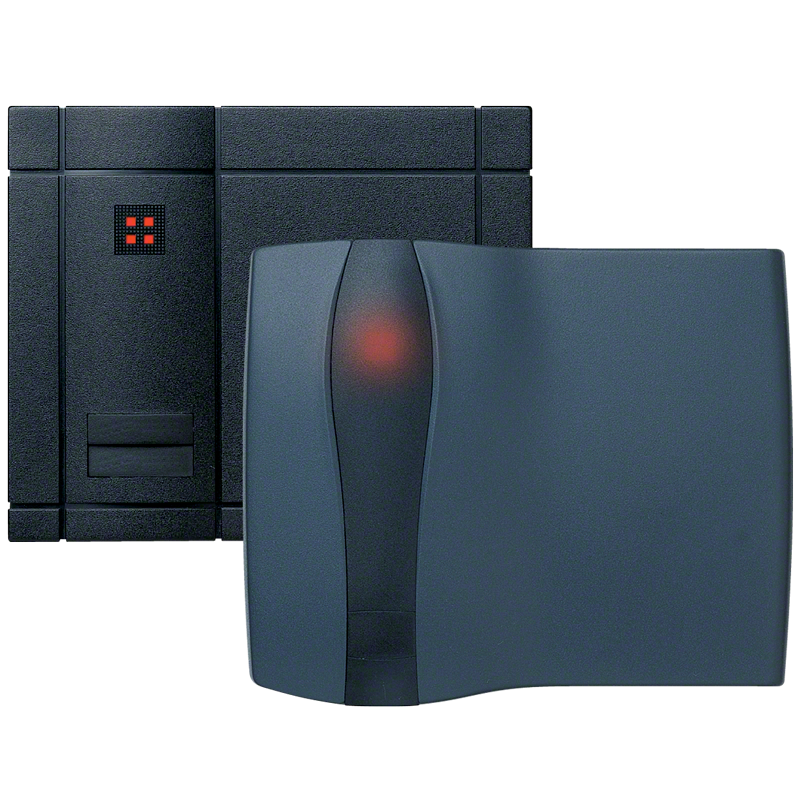

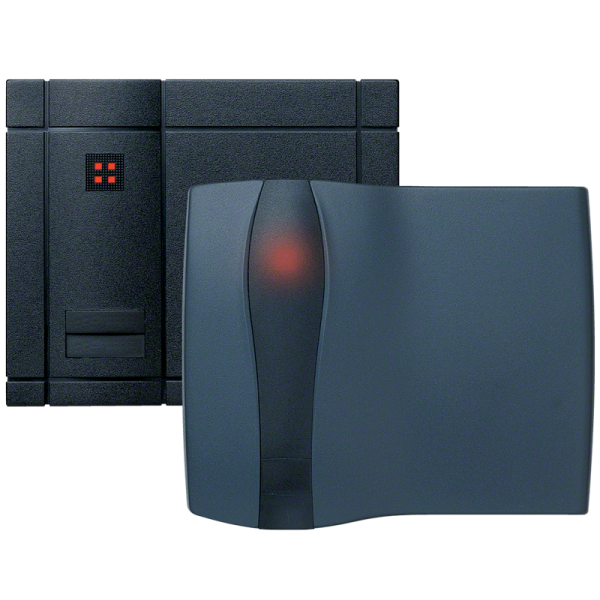

HID Indala Proximity Mid-Range Readers 610

查詢價錢

此型號可由傑成系統有限公司上門安裝(保安牌照 1507)。身份為安裝商及經銷商。安裝見閉路電視安裝;保養見保養;其他公司系統維修見維修。

  • 持牌安裝(保安公司牌照 1507)
  • 原廠行貨,原廠保用
  • 全港免費上門勘察

描述

HID Indala Proximity Mid-Range Readers 610 是 HID 門禁讀頭,用於大堂、層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準;高貨值場地不應只用易複製卡。

相關方案:HID 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁;原廠規格見下方。

HID Indala Proximity Mid-Range Readers 610
125 kHz proximity

The Indala® 125 kHz Mid-Range Reader product line is HID’s latest offering of highly-secure proximity readers. The HID Indala Mid-Range reader, with FlexSecur® technology, is designed for applications requiring a longer read range of up to 12 inches. These high-quality Indala Proximity Readers deliver outstanding and consistent performance with intelligent programming technology, a uniform core module, and a range of stylish bezel designs including Arch and Wave in a variety of colors.

Exclusive FlexSecur® Security Technology All HID Indala 125 kHz Proximity Readers feature FlexSecur technology, which provides an added level of access system security through a verification process at the reader. A unique HID Indala product feature, FlexSecur screens out unauthorized cards prior to sending access control data to the host system.

This additional verification step enhances the security of your access system in two ways:

  • The entire card data field is encrypted prior to programming the card. Therefore, the data on the card cannot be decoded to determine the actual information on the card. Only the reader is able to decrypt the data and transmit it to the access control system.
  • Cards and readers can be programmed uniquely for each site, protecting the end user against unauthorized entry attempts by using cards from another facility. Again, a feature unique to the HID Indala product line.



Key Features:

  • Indala FlexSecur® Technology for the Industry’s Most Secure Proximity Readers – Exclusive Indala FlexSecur Password-Protected Security between card and reader screens out unauthorized cards prior to sending access control data to the host system.
  • Superior Format Control for the Most Application Choices – Indala products offer card formats of up to 172 bits, and readers configurable for Wiegand, Magstripe, and Serial output formats.
  • Indala Mid-Range Series Readers are Part of an Expansive Product Portfolio That Meets Every Proximity Reader Requirement – The HID Indala Proximity portfolio includes classic, mullion/slim, wallswitch, mid-range, long-range, and heavy-duty keypad readers for every application.



SPECIFICATIONS

Read Ranges**
FlexISO® Card Up to 12″ (30 cm)
FlexISO XT Card Up to 12″ (30 cm)
FlexCard® Up to 12″ (30 cm)
FlexTag™ Up to 7″ (17 cm)
FlexKey® Up to 7″ (17 cm)
FlexISO MIFARE® Up to 12″ (30 cm)
FlexISO DESFire™ Up to 12″ (30 cm)
FlexISO iCLASS® Up to 12″ (30 cm)

Mounting
Metal or plastic single or double gang outlet box

Dimensions
Arch – 5.1″H x 6.1″W x 1.1″T (13.0 x 15.5 x 2.8 cm)
Wave – 5.5″H x 6.4″W x 1.4″T (14.0 x 16.3 x 3.5 cm)

Power Supply
4-14 VDC

Current Requirements
117 mA

Operating Temperature
-31º F to 149º F (-35º C to 65º C)

Operating Humidity
0-95% RH, non-condensing

Transmit Frequency
125 kHz

Certifications
UL294/cUL, FCC (US)
Canada, CE Mark (Europe)
Australia C-Tick
New Zealand EMC

Selectable Output Type
Wiegand, ABA Track II, Serial TTL (requires use of BIL 232/422 Module)
Standard Termination – wire pigtail
Programmable: Yes

Warranty
Lifetime

門禁讀頭安裝、調試、保養及維修

香港防盜(持牌主體傑成系統有限公司 KNS SYSTEM LTD)為門禁讀頭的安裝商及經銷商,保安牌照 1507、電業承辦商 029394。工作包括牆面開孔、走線、對接控制器(Wiegand/OSDP)。電鎖、出門掣及門磁通常接駁到控制器或 IO 模組,並非讀頭本身。保養包括清潔感應面、讀距及卡種核對。

查詢 2122-9527,WhatsApp 9439-8568。保養見保安系統保養。系統選型見門禁系統。HID 安裝見HID 門禁安裝。
