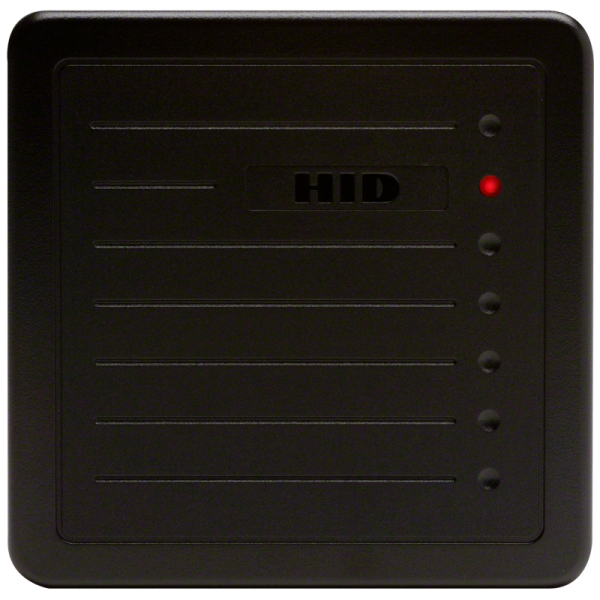

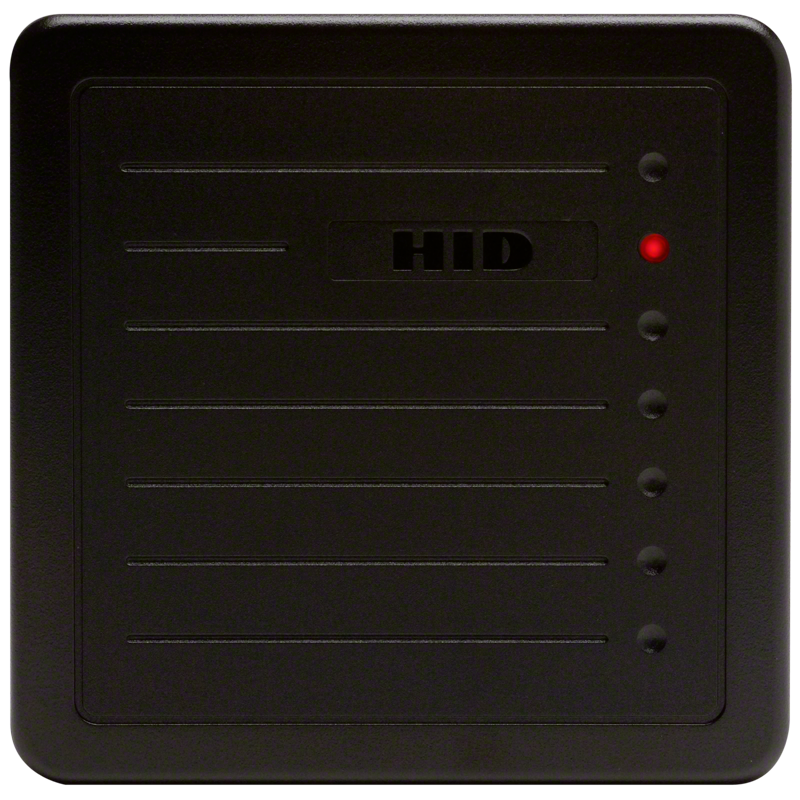

HID Proximity ProxPro II 5455

HID’s ProxPro® II proximity reader for access control combines performance, reliability, and ease of installation into a two-piece, weatherproof potted enclosure. International users will appreciate the multilingual installation manual, lower voltage requirement and flexible mounting options.

• Ideal for medium-range applications.
• Available with Wiegand or Clock-and-Data interface.
• Optional glass mount kit available for mounting the reader behind glass.
• Potted reader suitable for indoor or outdoor use.
• Available in black, white, gray or beige.
• 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order.

Key Features:

• Two-piece reader design allows for easy installation.
• Available with a Wiegand or Clock-and-Data interface.
• Provides high reliability, consistent read range and low power consumption.
• Features include multicolor LED and internal control or host control of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range performance. Optional kit enables mounting behind glass.
• Compare features of the ProxPro II to the original ProxPro reader



SPECIFICATIONS



Typical Maximum Read Range:

• ProxCard® II Card – up to 9″ (22 cm)
• ISOProx® II Card – up to 8″ (20 cm)
• DuoProx® II Card – up to 8″ (20 cm)
• Smart ISOProx® Card – up to 8″ (20 cm)
• Smart DuoProx® Card – up to 8″ (20 cm)
• HID Proximity and MIFARE® card – up to 8″ (20 cm)
• ProxCard® Plus Card – up to 4″ (10 cm)
• ProxKey® II Keyfob – up to 4″ (10 cm)
• MicroProx® Tag – up to 4″ (11 cm)

*Depending on local installation conditions.

Dimensions
5.00″ x 5.00″ x 1.00″ (12.7 x 12.7 x 2.54 cm)

Power supply:

• 5-16 VDC
• Linear power supplies are recommended.

Cable Distance:

• Wiegand interface: 500 feet (150 m)
• Clock-and-Data interface: 50 feet (15 m)
• Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.

Current Requirements:

• Average: 25 mA at 12 VDC
• Peak: 125 mA at 12 VDC

Operating Temperature
-22º to 150º F (-30º to 65º C)

Operating Humidity
0-95% relative humidity non-condensing

Weight
13.6 oz. (385 g)

Certifications:

• Canada/UL 294 Listed
• FCC Certification, United States
• Canada Certification
• CE Mark
• EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety)
• Fifteen EU Countries under the R&TTE Directive (EN300 330 – SRD, and ETS 300 683 – EMC)
• Australia C-Tick (pending)
• New Zealand (pending)
• Taiwan (pending)
