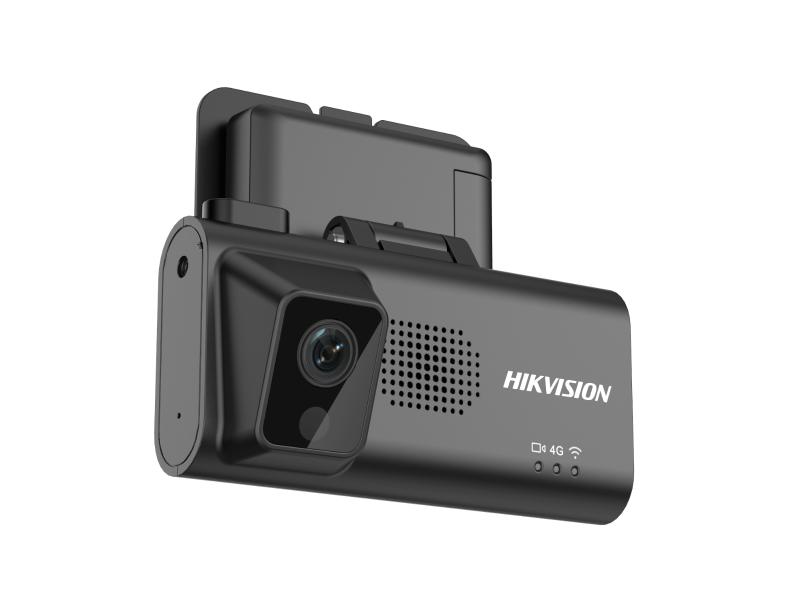

AE-DI2022-E32
Distribution Dashcam
AE-DI2022-E32 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor |
Front view: 1/2.8" CMOS Rear view: 1/2.8" CMOS |
| Min. Illumination |
Front view: 0.01 Lux Rear view: support IR |
| Shutter Speed |
Front view: 1/30 s Rear view: 1/30 s |
Lens
| Focal Length |
Front view: 3.19mm Rear view: 3.11mm |
| FOV |
Front view: HFOV: 111° VFOV: 58° DFOV: 134.5° Rear view: HFOV: 105° VFOV: 57.5° DFOV: 124° |
| Lens Mount |
Front view: M12 Rear view: M12 |
| Max. Aperture |
Front view: F2.0 Rear view: F2.25 |
Illuminator
| IR Wavelength |
850nm |
| Supplement Light Type |
IR |
Video
| Main Stream |
CH1: 1920 × 1080 (default) CH2: 1920 × 1080(default) |
| Sub-Stream |
CH1: 640 × 480(Default) CH2: 640 × 480 (Default) |
| Video Compression |
H.264 (Default), H.265 |
| Video Bit Rate |
Main Stream Video Bit Rate： CH1: 8Mbps,4 Mbps (Default),2Mbps,1Mbps CH2: 4Mbps,2 Mbps,1 Mbps (Default),512Kbps Sub-Stream Video Bit Rate： CH1: 512Kbps (Default),256Kbps CH2: 512Kbps,256Kbps(Default) |
| Stream Type |
PS Stream |
| Frame Rate |
Main Stream Frame Rate： 10 fps, 15 fps, 25fps, 30 fps available. The default CH1 is 25 fps, and CH2 is 15 fps. Sub-Stream Frame Rate： 10fps, 15fps, 25fps, 30 fps available, CH1-CH2 default 15 fps. |
| Video Input |
2-Channel Video |
Audio
| Audio Compression |
AAC/G711u (Default)/G711A |
| Audio Bit Rate |
G711U: 64 kbps (Default) G711A: 64 kbps AAC: 64 kbps |
| Audio Sampling Rate |
G711U: 8kHz(Default) G711A: 8kHz AAC: 16kHz |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| Audio Input |
1-Way, Built-In mic |
Wi-Fi
| Wi-Fi Protocol |
802.11 b/g/n/ax |
| Frequency Range |
2.4 GHz |
| Antenna |
2.4 GHz |
Mobile Communication
| Frequency |
Europe: LTE-FDD: B1, B3, B5, B7, B8, B20, B28 Latin America: LTE-FDD: B2, B3, B4, B5, B7, B8, B28, B66 Warning: The device requires industrial SIM card. Normal SIM card is not allowed. We are not responsible for any problems caused by using any normal SIM card. |
| SIM Card Type |
Nano SIM card |
| SIM Card Slot |
2 (plug-in type, support industrial-grade Nano SIM card, dual-card single waiting) |
| Dial-up |
Support |
| SNR |
Front view: 42dB Rear view: 42dB |
| Wide Dynamic Range (WDR) |
Front view: Linear Rear view: Linear |
| OSD |
Date, time, GPS latitude and longitude, speed, license plate, and channel name. |
Function
| bluetooth |
Support, BLE5.2 |
Interface
| Local Storage |
Up to 512GB |
| Audio |
Audio Input：1-Way, Built-In mic Audio Output：1-Way, Built-In Speaker |
| Reset Key |
1 (pinhole button) Press (≥1 sec & < 5 sec) to reset the device to restart. Press and hold the reset key (≥ 5 sec) to restore the default parameter settings. |
| Power Output |
1 (10pin BMW) |
| TF Card Storage |
Supports 1 TF card (up to 512GB each). Class 10 or above are recommended. |
Satellite Positioning
| GPS Information Detection |
GPS (Global Positioning System) GLONASS (Global Navigation Satellite System) GALILEO (Galileo satellite navigation system) |
Indicator
| Indicator |
Record Indicator: Solid light: Recording normal. Not on: Recording exception. 4G indicator: Solid light: 4G signal is normal. Platform connected. Flashing: 4G signal is normal. Platform not connected. Not on: No 4G signal. Wi-Fi Status Indicator: Solid light: Wi-Fi AP is on. App is connected. Flashing: Wi-Fi AP is on. APP is not connected. Not on. Wi-Fi AP is off. |
General
| Product Dimension |
113 mm × 71 mm × 68 mm (including mounting bracket). |
| Package Dimension |
137mmx119mmx108mm |
| Product Weight |
217 g (with mounting bracket) |
| With Package Weight |
380 g |
| Power Supply |
9-36V |
| Power Consumption |
Max: 6W |
| Storage Conditions |
-40°C to 85°C |
| Protection |
IP4X (not water-proof) |
| Language |
English, Turkish, Portuguese, Spanish, Russian |
| Software Reset |
Support |
| Online Upgrade |
Support |
| System |
Embedded System |
| Operating Temperature |
-30 °C to 70°C |
| Sensor |
3-Axis |
Parking monitoring
| Parking monitoring |
Support |
