描述
AE-MJ0710T

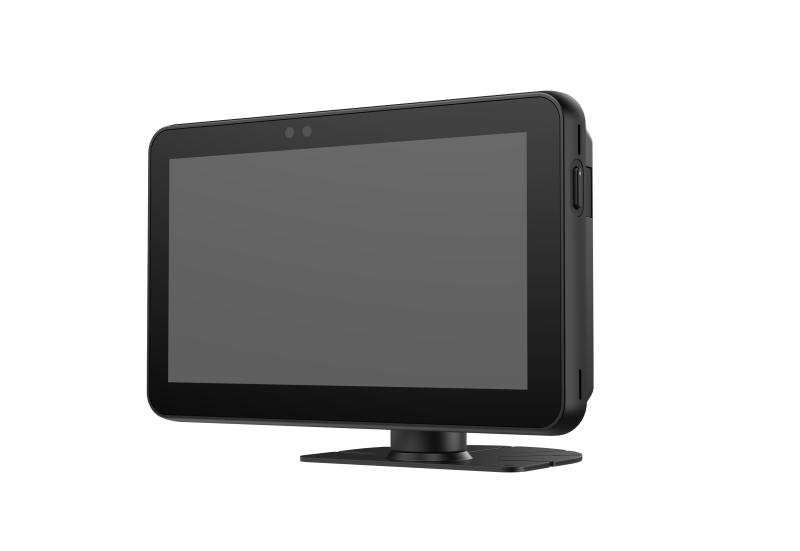

7" Vehicle HD Touch Monitor
AE-MJ0710T 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Screen
| Screen Size |
7 inch |
| Resolution |
1024 (H) × 600 (V) |
| Brightness |
600 cd/m² |
| Touchscreen |
Supports capacitive touch screen (full lamination) |
| LCD Technology |
IPS |
| Contrast Ratio |
1000:1 |
| Viewing Size |
154.21(H) mm × 85.92(V) mm |
General
| Product Dimension |
183.4mm*117.4mm*29.1mm (without bracket) |
| Working Temperature |
-20°C to +70°C (-4°F to +158°F) |
| Power Consumption |
＜5.5W (without the camera connected) |
| Installation |
Bracket, Wall mounting |
| Standby Power Consumption |
＜0.5W |
| Storage Temperature |
-30°C to +80°C (-22°F to +176°F) |
Peripheral Device Interface
| Video-In Slot |
2*AHD, TVI (1080P/720P) / NTSC / PAL Adaptive |
| External Interface |
1*RS485 Interface, 1*IO Trigger |
Battery
Function
| Buzzer |
Support |
| Optical sensor |
Support |
| Control Mode |
Touch and Remote control |
