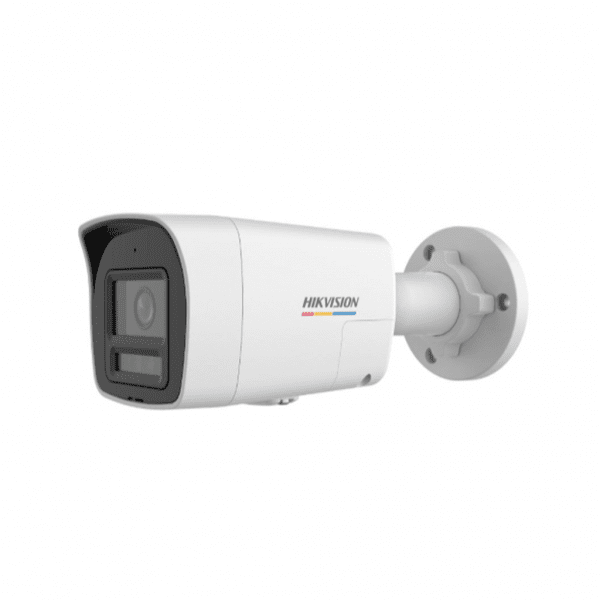

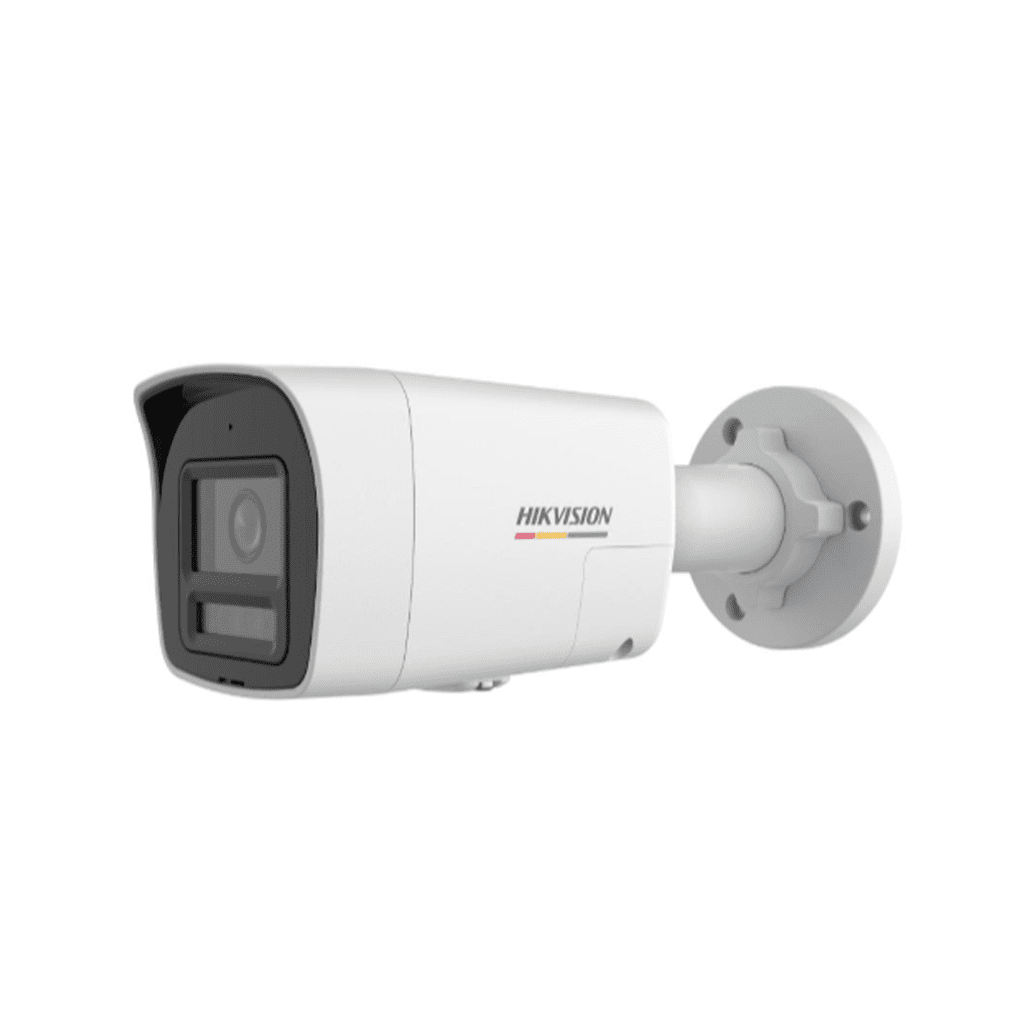

HIKVISION DS-2CD1067G3-LIU(F)(/SL)(/SRB)
6 MP ColorVu 3.0 Fixed Bullet Network Camera
Features
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- /SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
- -F: Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| General | |
| Power | -LIU,-LIUF: -LU: 12 VDC ± 25%, 0.59 A, max. 7.1 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.6 W -LIU/S(L)(RB), -LIUF/S(L)(RB): 12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Dimension | -LIU、-LIUF: 172.9 mm × 69.8 mm × 67.9 mm (6.8″ × 2.7\” × 2.7\”) -LIU/S(L)(RB)、-LIUF/S(L)(RB): 69.1 mm × 67.4 mm × 179 mm (2.7 × 2.7\” × 7.1\”)” |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.7″) |
| Weight | -LIU: Approx. 320 g (0.71 lb.) -LIUF: Approx. 330 g (0.73 lb.) -LIU(F)/SL: Approx. 340 g (0.75 lb.) -LIU(F)/SRB: Approx. 340 g (0.75 lb.) |
| With Package Weight | -LIU: Approx. 445 g (0.98 lb.) -LIUF: Approx. 450 g (0.99 lb.) -LIU(F)/SL: Approx. 480 g (1.06 lb.) -LIU(F)/SRB: Approx. 480 g (1.06 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
