描述

海康威視 DS-2CD1127G3-LIU(F)(/SL)(/SRB) 是 2MP ColorVu 3.0 定焦半球網絡鏡頭，全天候彩色影像，配 HikAI-ISP 降噪及人形／車輛分類；/SL、/SRB 型號設雙向對講及閃燈警報，-F 型號支援最大 512GB 記憶卡。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：海康威視閉路電視安裝、閉路電視安裝。

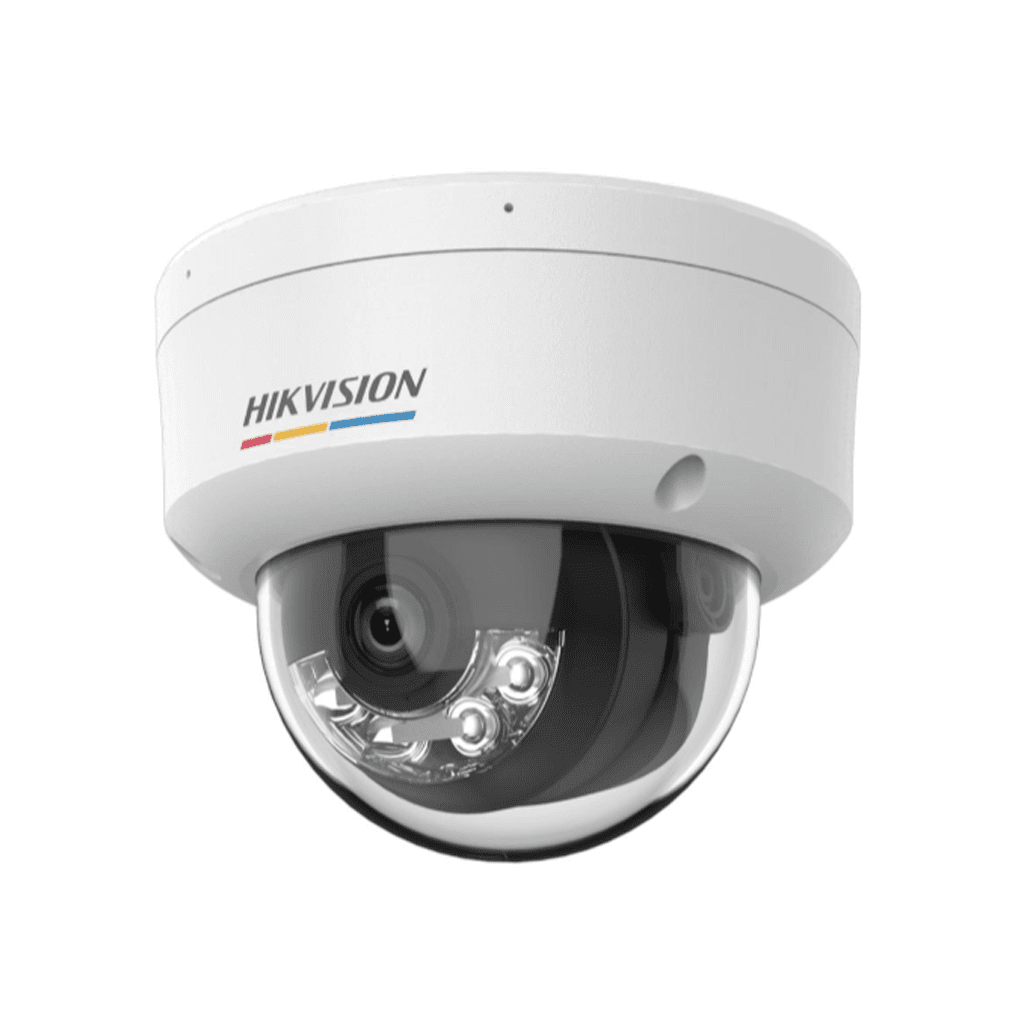

HIKVISION DS-2CD1127G3-LIU(F)(/SL)(/SRB)

2 MP ColorVu 3.0 Fixed Dome Network Camera

Features

HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
/SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
-F: Support on-board storage up to 512 GB (SD card slot) (Optional)
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
Water and dust resistant (IP67) and vandal resistant (IK08)

Specifications

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC,HLC,3D DNR
Privacy Mask	4 programmable polygon privacy masks
General
Power	12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material	Base: metal, cover: plastic
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)
Package Dimension	150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight	Approx. 550 g (1.2 lb.)
With Package Weight	Approx. 800 g (1.8 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, anti-banding, mirror, password protection,password reset by email
