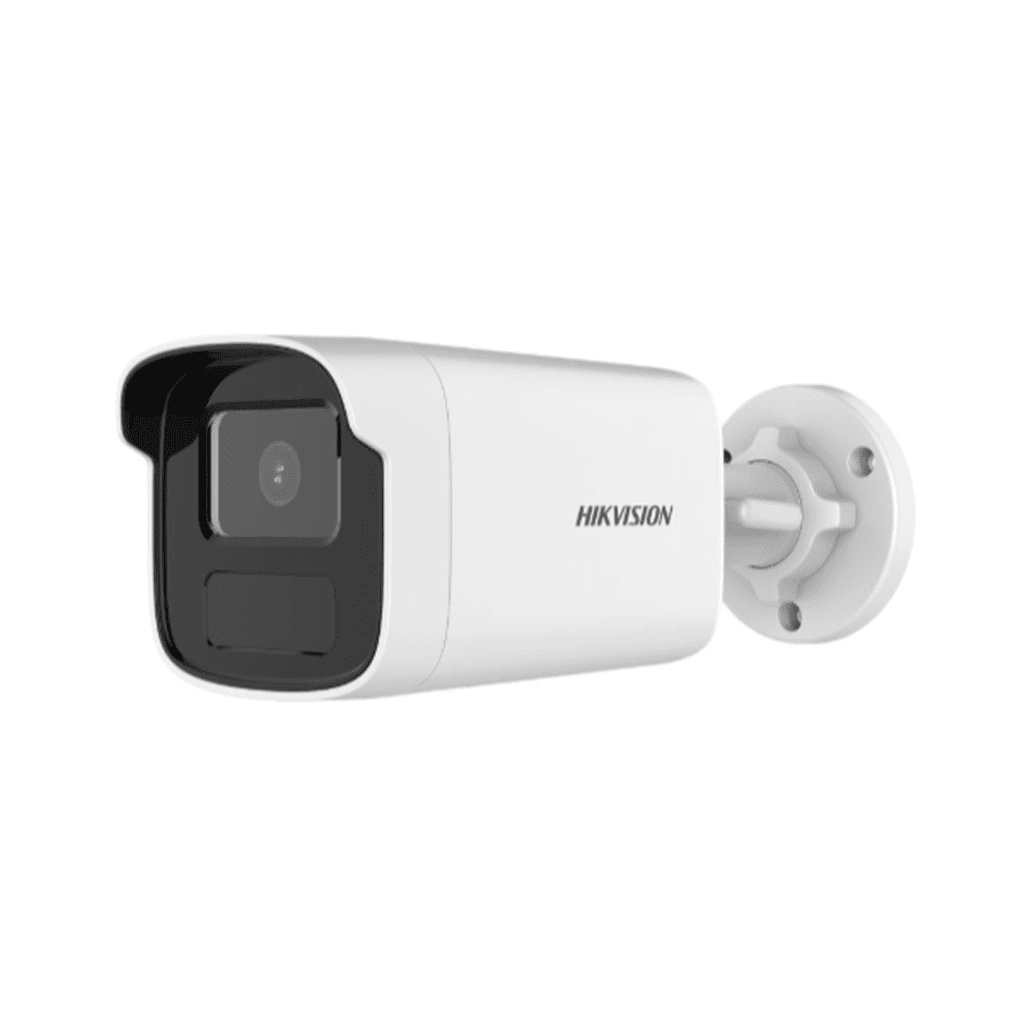

HIKVISION DS-2CD1T83G0-I(UF)
4K Fixed Bullet Network Camera
Features
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dustresistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- -IUF: Built-in microphone for real-time audio security
- -IUF: Support on-board storage up to 256 GB (SD card slot)
Specifications
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | 4 mm: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR 6 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Privacy Mask | 4 regions of privacy mask |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W |
| Material | Metal & Plastic |
| Dimension | 83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″× 8.1″) |
| Package Dimension | 260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″) |
| Weight | -I: Approx. 400 g (0.9 lb.) -IUF: Approx. 415 g (0.9 lb.) |
| With Package Weight | -I: Approx. 619 g (1.4 lb.) -IUF: Approx. 634 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, password reset via e-mail |
