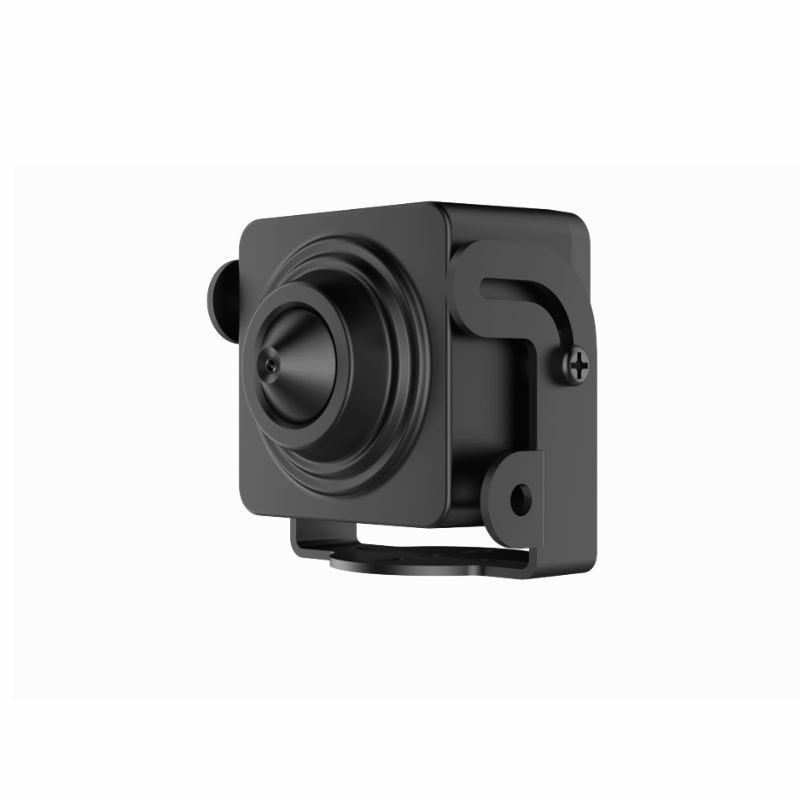

HIKVISION DS-2CD2D11G0-D/NF

Covert Network Camera

  • High quality imaging with 1.3 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Mini size suitable for covert installations

描述

Camera

Image Sensor: 1/2.7″ Progressive Scan CMOS

Min. Illumination: Without /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) With /M model: Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)

Shutter Speed: 1/3 s to 1/100,000 s

Slow Shutter: Yes

Digital Noise Reduction: 3D DNR

WDR: 120dB

Auto-Iris: No

Day & Night: Electronic

Lens

Focus: Fixed

FOV: Without /M model: 3.7 mm horizontal FOV: 51°, vertical FOV: 38°, diagonal FOV: 64° With /M model: 2.8 mm horizontal FOV: 74°, vertical FOV: 55°, diagonal FOV: 93° 4 mm horizontal FOV: 55°, vertical FOV: 41°, diagonal FOV: 70°

Lens Mount: M12

Focal Length: Without /M model: 3.7 mm With /M model: 2.8 mm, 4 mm


Image Enhancement: 3D DNR

Image Setting: Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Day/Night Switch: Day/Night/Auto/Schedule

Max. Resolution: 1280 × 960

Main Stream: 50Hz: 25fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1280 × 960, 1280 × 720)

Third Stream: 50Hz: 1fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 1fps (1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Network

Network Storage: Support NAS (NFS, SMB/CIFS)

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

API: ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View: Up to 6 channels

User/Host: Up to 32 users 3 levels: Administrator, Operator and User

Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger: Motion detection, video tampering, IP address conflict, illegal login

General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface

Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Audio: 1 input (line in)

Reset Button: Yes

General

Power Supply: 12 VDC ± 20%, Φ 5.5 mm coaxial plug power

Power Consumption And Current: 12 VDC, 0.3 A, max. 3 W

Material: Aluminum Alloy

Dimensions: Without /M model: 31 mm × 31 mm × 26 mm (1.2″ × 1.2″ × 1″) With /M model: 31 mm × 31 mm × 39 mm (1.2″ × 1.2″ × 1.5″)

Weight: With package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.)

Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Compression Standard

H.264+: Yes

H.265+: Yes

H.264 Type: Baseline Profile/Main Profile/High Profile

Video Compression: H.265/H.264/MJPEG

H.265 Type: Main Profile

Video Bitrate: 32 Kbps to 8 Mbps

Smart Feature-Set

Face Detection: Yes

Exception: Scene change detection, defocus detection

Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection

Region Of Interest: Support 1 fixed region for main stream, sub-stream and third stream
