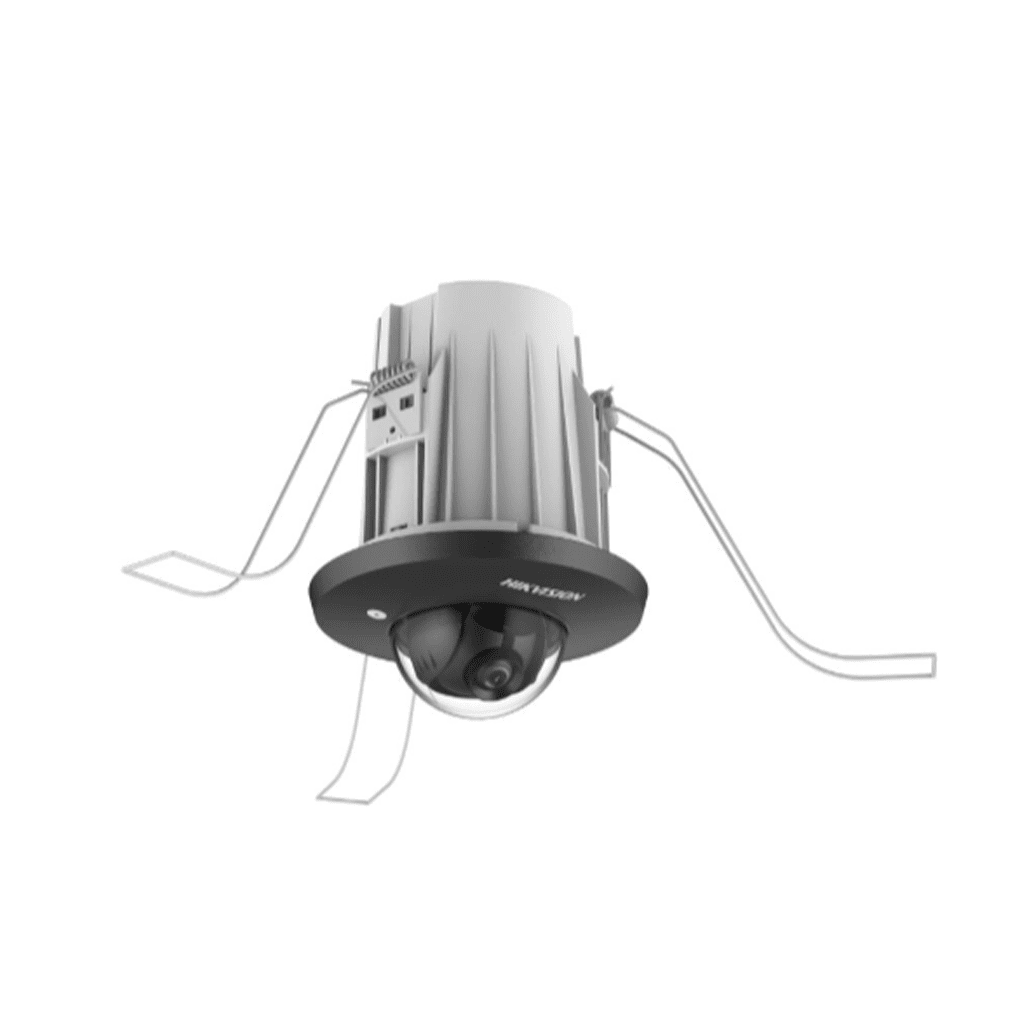

HIKVISION DS-2CD2E23G2-U
2 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera
Features
- High quality imaging with 2 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Focus on human and vehicle targets classification based on deep learning
Specifications
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Tilt: 0° to 75° |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| General | |
| Power | 12 VDC ± 25%, 0.25 A, max. 3 W, two-core terminal block PoE: IEEE 802.3af, 36 V to 57 V, Class 3, 0.11 A to 0.07 A, max. 4 W |
| General Function | Heartbeat,mirror,password reset via email,pixel counter,anti-banding |
| Storage Conditions | -10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Material | Plastic body |
| Dimension | Ø93.9 mm × 117.5 mm (Ø3.7″ × 4.6″) |
| Package Dimension | 135 × 135 × 183 mm (5.3″ × 5.3″ × 7.2″) |
| Weight | Approx. 155 g (0.3 lb.) |
| With Package Weight | Approx. 325 g (0.7 lb.) |
