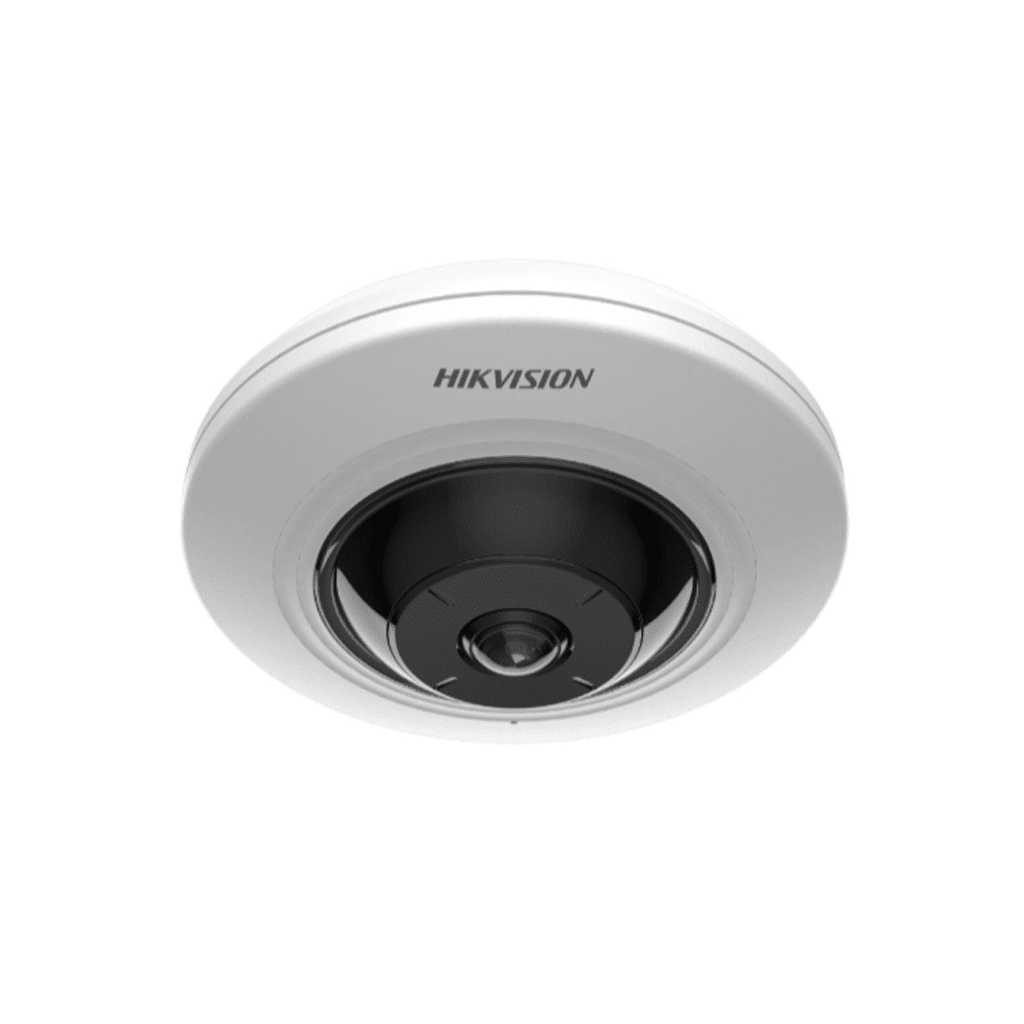

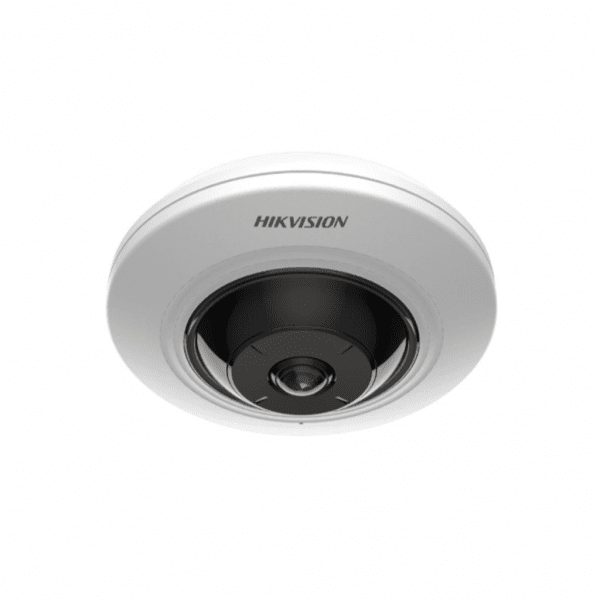

HIKVISION DS-2CD3956G2-IS(U)
5 MP AcuSense Fisheye Network Camera
Features
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- Efficient H.265+ compression technology
- 360° fisheye view（Ceiling mount）
- High quality imaging with 5 MP resolution
- Up to 4 live view display modes
- Clear imaging against strong back light due to 120 dB true WDR technology
Specifications
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Min. Illumination | Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| General | |
| Power | 12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W |
| Dimension | Ø119.9 mm × 41.2 mm (Ø4.7″ × 1.6″) |
| Package Dimension | 150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″) |
| Weight | Approx. 320 g (0.7 lb.) |
| With Package Weight | Approx. 510 g (1.1 lb.) |
| General Function | Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Storage Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
