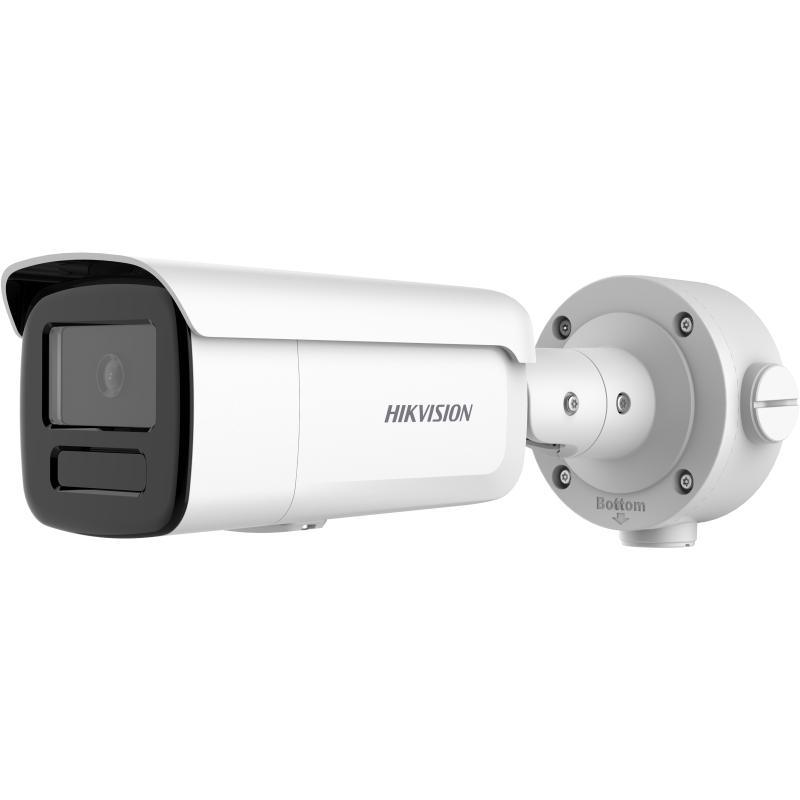

DS-2CD3T66G2-4IS
6 MP AcuSense Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.4″ Progressive Scan CMOS
- Max. Resolution 3200 × 1800
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- DORI
- DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 90 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- HEOP
- Open Resources NA
- Computing Power NA
- Open Capability NA
- Deep Learning Structure NA
- Programming Language NA
- Video
- Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 768 × 432, 640 × 360) 60 Hz: 30 fps (1280 × 720, 768 × 432, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- Target Cropping Yes
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200,Hik-Connect,Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB
- Image Enhancement BLC,HLC,3D DNR,Defog
- SNR ≥ 52 dB
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Reset Key Yes
- Power Output 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- Face Capture Yes
- People Counting Yes
- General
- Power 12 VDC ± 25%, 1.12 A, max. 13.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 15.5 W
- Material Metal
- Dimension 325.7 mm × 93.3 mm × 91.2 mm (12.82″ × 3.67″ × 3.59″)
- Package Dimension 386 mm × 156 mm × 155 mm (15.20″ × 6.14″ × 6.10″)
- Approx. 1120 g (2.47 lb.)
- With Package Weight Approx. 1914 g (4.22 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
