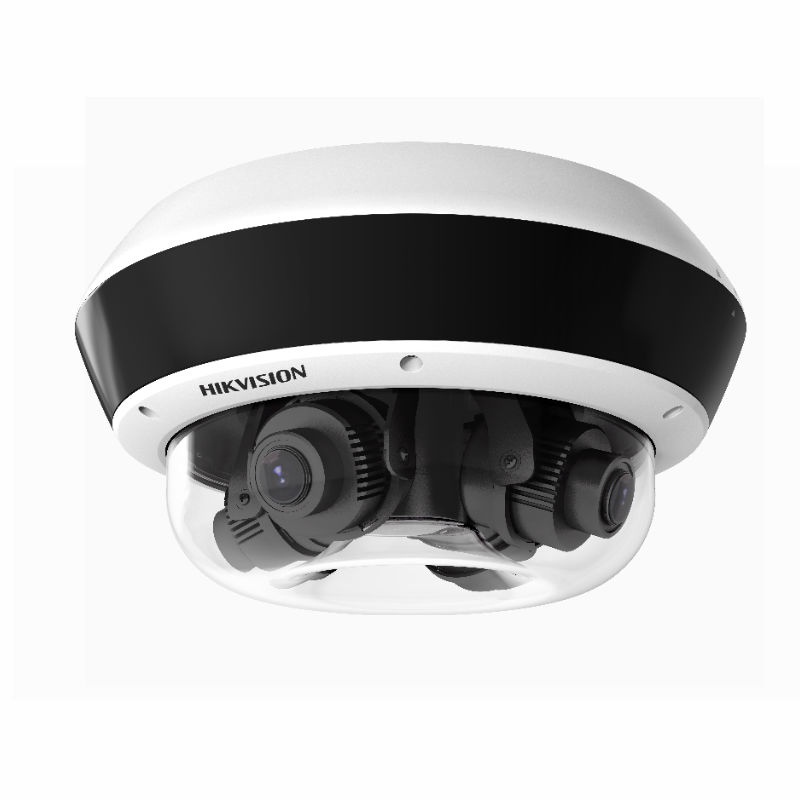

HIKVISION DS-2CD6D54FWD-(I)(Z)(H)(S)(/NFC)

4-Directional Multisensor Network Camera

  • 4 adjustable lenses in one camera cover up to a 360° field of view, ensuring zero-blind zone monitoring
  • the monitoring tilt angle can also be adjusted
  • Each lens has a resolution of up to 5 MP, capturing clear images
  • more details can be displayed on a video wall
  • A built-in heater provides ultra-low temperature start-up to -40℃
  • IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
  • FC interface: the camera can be connected by fiber optical cable for the transfer of data over long distances
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements

描述

Camera

Image Sensor: 1/2.7″ Progressive Scan CMOS

Min. Illumination: Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on

Shutter Speed: 1 s – 1/100,000 s

Slow Shutter: No

DNR: 3D DNR

WDR: 120 dB

3-Axis Adjustment: Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°

Day & Night: IR Cut Filter

Auto-Iris: No

Lens

Aperture: F1.6

FOV: Horizontal field of view: 30° to 101°,Vertical field of view: 22.4° to 73°,Diagonal field of view: 37° to 137°

Lens Mount: Φ14

Focal Length: 2.8mm to 12mm

Audio

Audio Compression: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio I/O: Support


Image Enhancement: BLC, 3D DNR, EIS

Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser

Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480),60Hz: 24fps (704 × 480, 640 × 480),

Max. Resolution: 2560 x 1920

Main Stream: 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720),60Hz: 24fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720)

Third Stream: 50Hz: 6fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 8fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Network

Protocols: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

API: V5.5.30

Security: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP

Simultaneous Live View: ONVIF (PROFILE S, PROFILE G), ISAPI

User/Host: Up to 20 channels

Client: Up to 32 users,3 levels: Administrator, Operator and User

Web Browser: iVMS-4200

Detection: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Firmware Version: One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter

Smart Features: IE8+, Chrome31-44, Firefox 30.0 – 51

Interface

Communication Interface: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Alarm: 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo

Video Output: 1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC)

On-Board Storage: 2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )

Reset Button: Support

Housing Interface: Yes

General

Power Supply: ‘-30 °C to 60 °C (-22 °F to 140 °F). -H: -40 °C to 60 °C (-40 °F to 140 °F),Humidity 95% or less (non-condensing)

Weight: Camera: Ø290 mm × 145.5 mm (Ø11.42″ × 5.73″),Package: 453 mm × 393 mm × 385 mm (17.8″ × 15.47″ × 15.16″)

Operating Conditions: 20 km

Power Consumption: 12 VDC ± 20%, 24 VAC ± 20% (for customization), three-core terminal block, ,-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, -Z: PoE (802.3at)

Accessory: IP67, IK10

Shipping Weight: 12 VDC ± 20%: max. 28 W/2.3 A,24 VAC ± 20%, max. 50 to 60 Hz/2.5 A (for customization),-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A,-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W

Wiper: Aluminum alloy, engineering plastics

Compression Standard

H.264+: Yes

H.265+: Yes

H.264 Type: Baseline Profile/Main Profile/High Profile

Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

H.265 Type: Main Profile

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM

Video Bit Rate: 32 Kbps to 16 Mbps

Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Fiber Optical

Optical Type: FC interface

Input/Output Wavelength: Single mode, single fiber

Transmission Distance: Tx1310nm/1.25G, Rx1550nm/1.25G

IR

IR Range: 10 m to 30 m

Wavelength: 850 nm

Road Traffic And Vehicle Detection

Accuracy: Camera: Approx. 4.7 kg (10.3 lb.),With package: Approx. 7.7 kg (16.8 lb.)

Smart Feature-Set

Face Detection: Yes

Exception Detection: Audio exception detection, scene change detection, defocus detection

Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Region Of Interest: Support 4 fixed region for each stream
