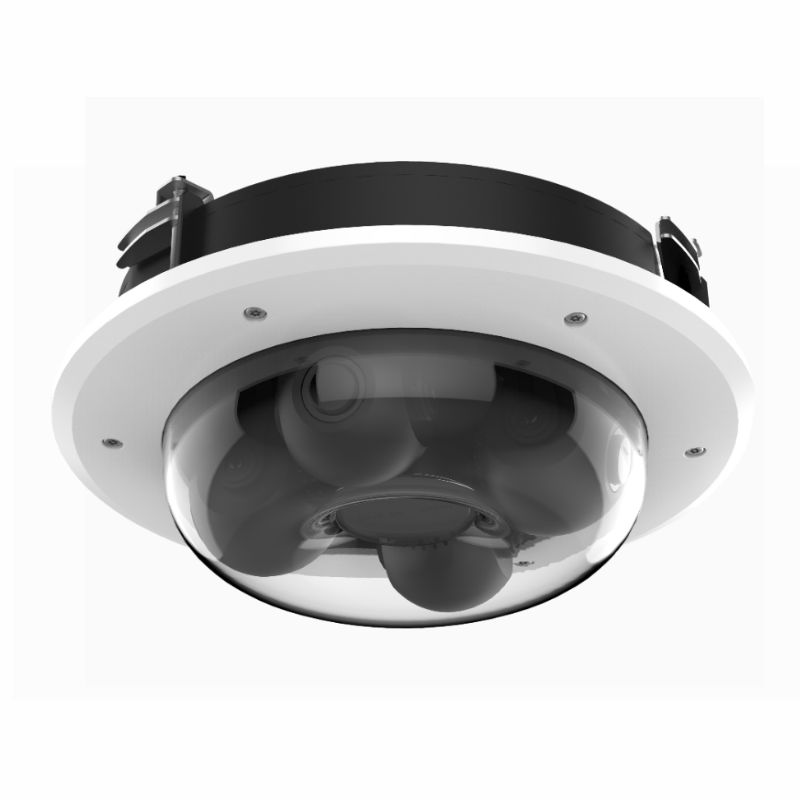

HIKVISION DS-2CD6D54G1-(I)(Z)(S)(/RC)

4-Directional Multisensor Network Camera

  • 4 adjustable lenses in one camera cover up to 360° filed of view, ensuring 0-blind zone monitoring and the monitoring tilt angle can be adjusted
  • Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
  • Built-in heater, ultra-low temperature start up from -40℃
  • In-ceiling mounting makes the fisheye camera unnoticeable and user friendly

描述

Camera

Image Sensor: 1/2.7″ Progressive Scan CMOS

Min. Illumination: Color: 0.0125 Lux @ (F1.9, AGC ON); B/W: 0.0025 Lux @ (F1.9, AGC ON)

Shutter Speed: 1 s to 1/100,000 s

Slow Shutter: Yes

Day &Night: IR cut filter

Angle Adjustment: Pan: -60° to 60°, tilt: 10° to 90°

WDR: 120 dB

Lens

Aperture: F1.9

Focus: Manual, semi-auto

FOV: Horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°

Lens Mount: Φ14

Lens Type: Varifocal lens, 2.8 to 8 mm

Video

Max. Resolution: 2560 × 1920

Video Stream: 3 defined streams

Main Stream: 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60Hz: 24fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 24fps (704 × 480, 640 × 480)

Third Stream: 50Hz: 6fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 8fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type: Baseline Profile/ Main Profile/ High Profile

H.265 Type: Main Profile

Video Bit Rate: 32 Kbps to 16 Mbps

SVC: H.264 encoding

H.264+: Main stream support

H.265+: Main stream support

Audio

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Environment Noise Filtering: Yes

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Smart Event: Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection

Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Region Of Interest: 4 fixed regions and dynamic face tracking for each stream

Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture


Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS

Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping: Yes

Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

SNR: ≥52dB

Network

Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for ONVIF

Simultaneous Live View: Up to 20 channels

User/Host: Up to 32 users. 3 user levels: administrator, operator and user

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

Interface

Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port built-in RS232 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)

Audio: 1 input (line in), 1 output (line out), mono sound

Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1A)

On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB

General

Firmware Version: V5.5.32

Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function: Anti- flicker, 3 streams, heartbeat, mirror, privacy masks

Reset: Reset via reset button on camera body, web browser and client software

Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply: 12 VDC± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%; PoE (802.3af, class 0)

Power Consumption And Current: 12 VDC, 1.2 A, 14 W 24 VAC, 1 A, 14 W PoE (802.3af, 36 to 57 VDC), 0.36 to 0.22 A, 13 W, class 0

Material: Bubble: plastic, camera: metal

Dimensions: Camera: Φ255 × 96 mm (10″ × 3.8″) Package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)

Weight: Camera: 2.02 kg (4.5 lb); with package: 3.34 kg (7.4 lb)

Approval

EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection: Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
