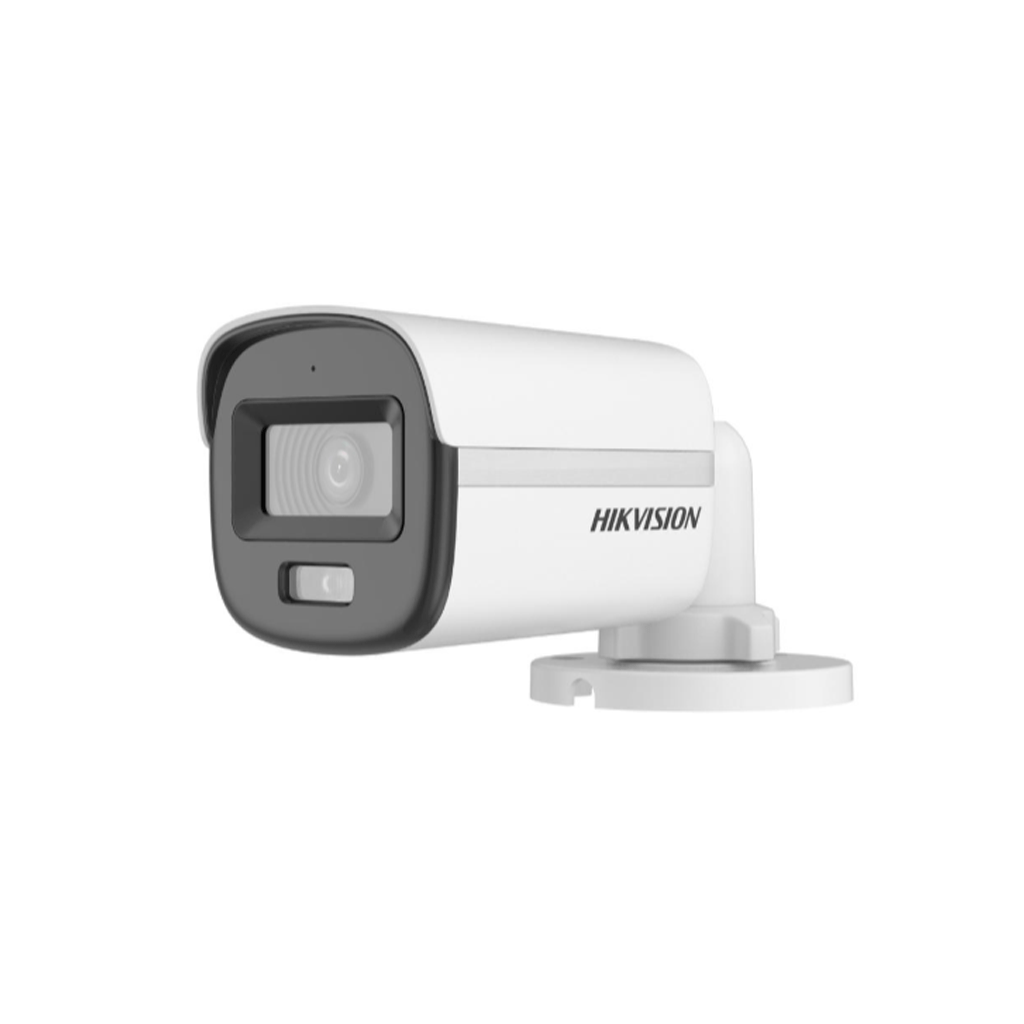

HIKVISION DS-2CE10DF0T-F
2 MP ColorVu Fixed Mini Bullet Camera
Features
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mmfixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Angle Adjustment | PAL/NTSC |
| Signal System | Solid Light Alarm (White Light) |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| General | |
| Power | 12 VDC ± 25%, Max. 2.4 W *You are recommended to use one power adapter to supply the power for one camera |
| Material | Metal |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″) |
| Weight | Approx. 395 g (0.87 lb) |
| Operating Condition | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
