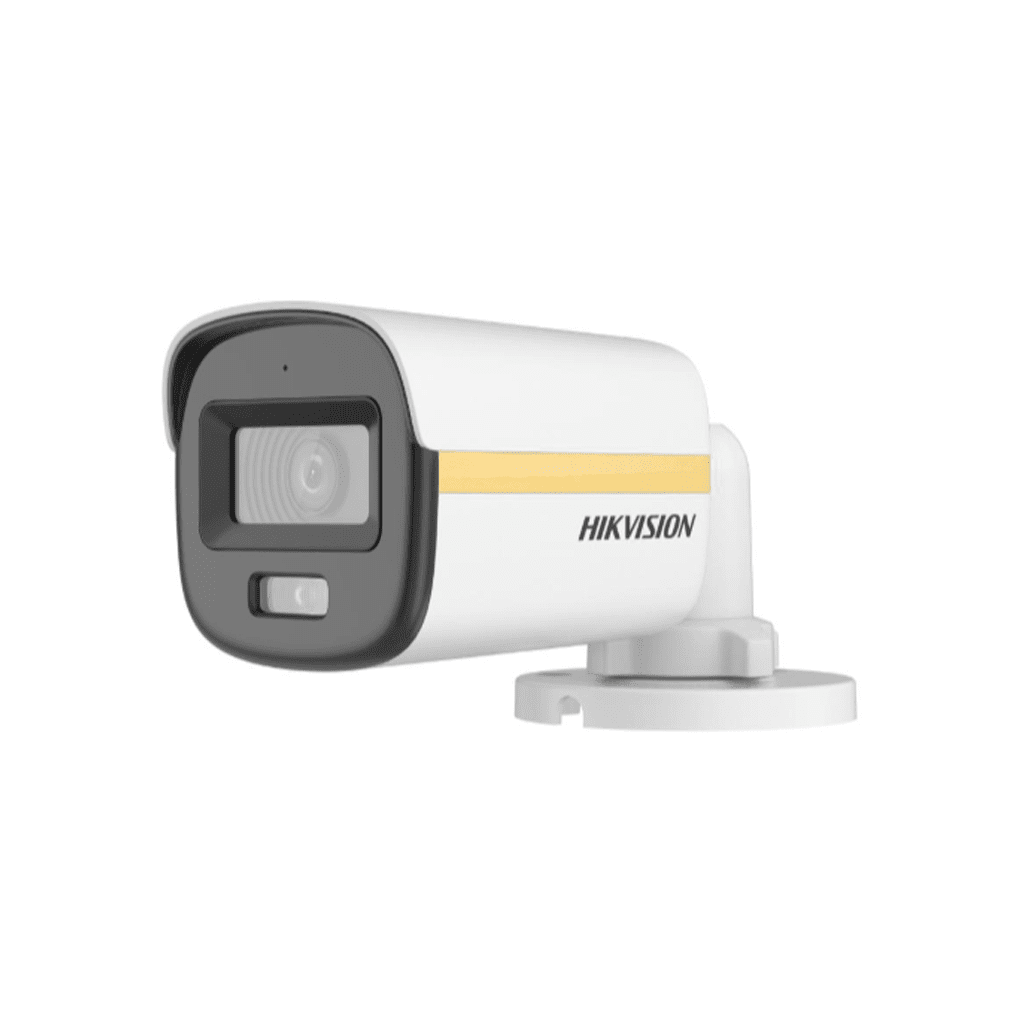

HIKVISION DS-2CE10DF3T-LPFS
2 MP ColorVu Dual-light Fixed Mini Bullet Camera
Features
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- Up to 20 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max. 16 times |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Contrast, Sharpness, Anti-banding, AGC |
| Frame Rate | TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| General | |
| Power | 12 VDC ± 25%, max. 5.4 W *You are recommended to use one power adapter to supply the power for one camera |
| Material | Plastic |
| Dimension | 161.1 mm × 68.4 × 65.15(6.34″ × 2.69″ × 2.57″) |
| Weight | Approx. 260 g (0.6 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
