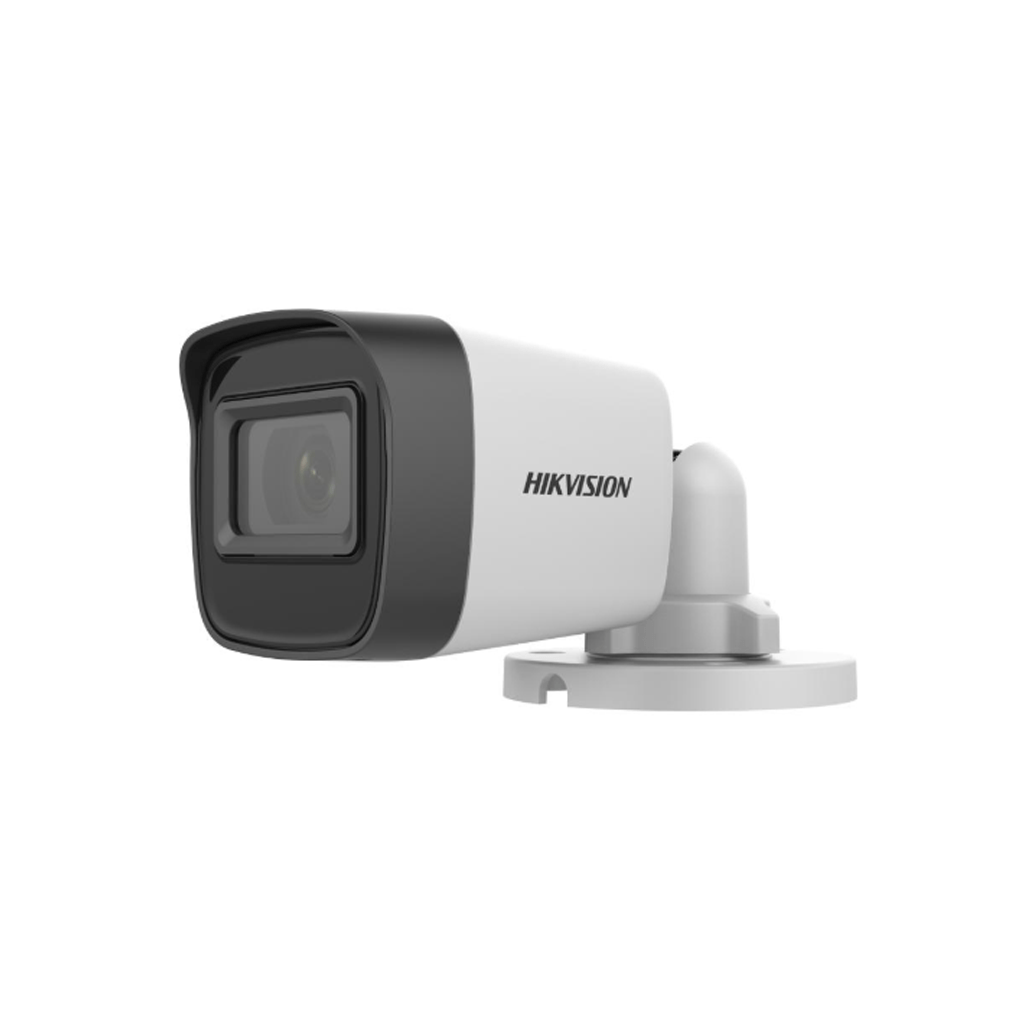

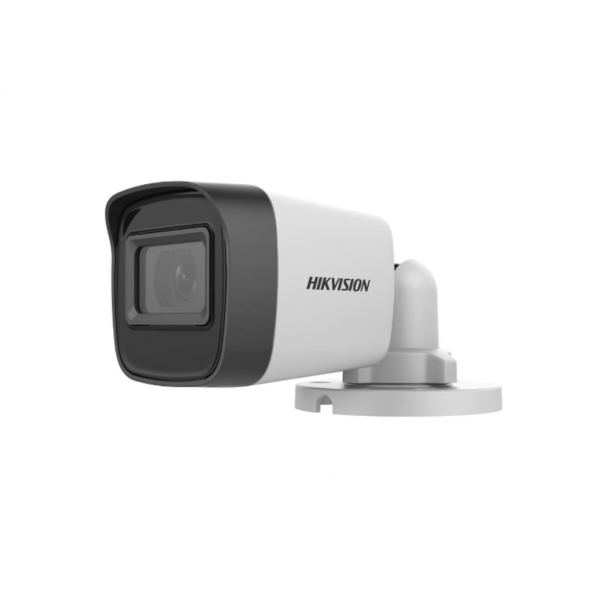

HIKVISION DS-2CE16D0T-ITPF(C)
2 MP Fixed Mini Bullet Camera
Features
- 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm, 6 mm fixed lens
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- Smart IR, up to 25 m IR distance
- IP67
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| AGC | Support |
| General | |
| Material | Plastic |
| Dimension | 57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″) |
| Weight | Approx. 141 g (0.31 lb.) |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 2.2 W |
| IR Range | Up to 25 m |
