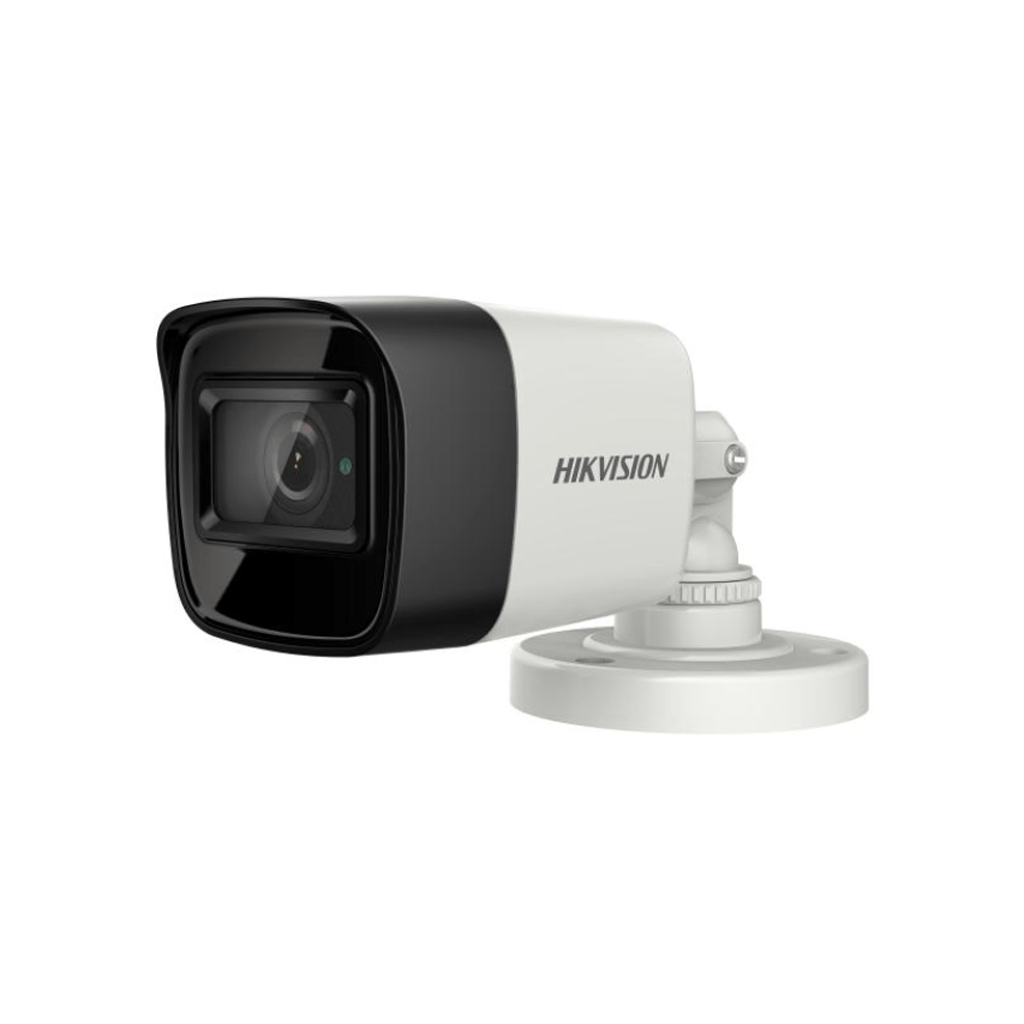

HIKVISION DS-2CE16H8T-ITF
5 MP Ultra Low Light Fixed Mini Bullet Camera
Features
- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Settings | Brightness;Sharpness;Mirror;Smart IR;AGC |
| Frame Rate | TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps CVI: 4 MP@25 fps, 4 MP@30 fps CVBS: PAL, NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| General | |
| Power | 12 VDC ± 25%, max. 5.8 W *You are recommended to use one power adapter to supply the power for one camera |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 158.6 mm (2.28″ × 2.40″ × 6.42″) |
| Weight | Approx. 320 g (0.71 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
