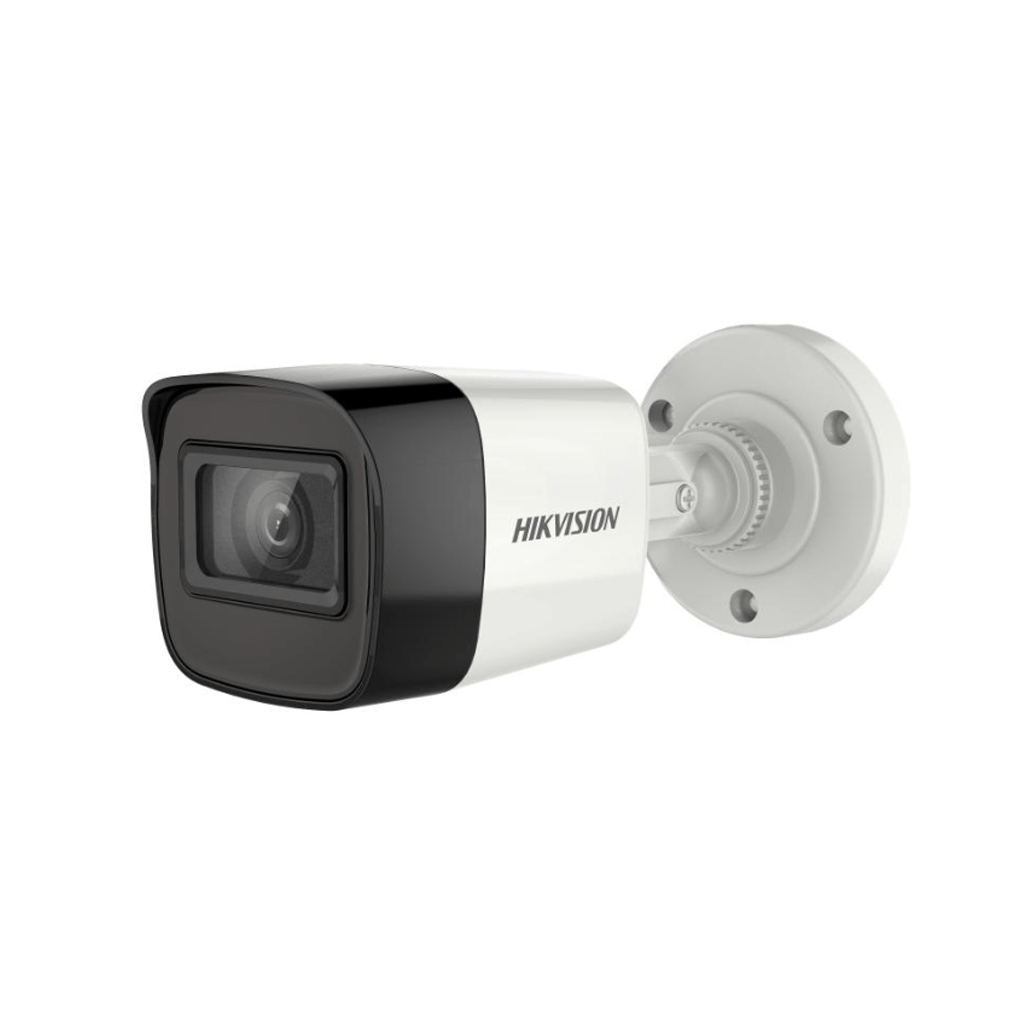

HIKVISION DS-2CE16U1T-ITPF
4K Fixed Mini Bullet Camera
Features
- 8 MP bullet camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Settings | Brightness, Sharpness, DNR, Smart IR, HLC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps,2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR/ 105 dB |
| Image Enhancement | BLC |
| Noise Reduction | Auto/Manual |
| White Balance | Yes |
| General | |
| Material | Plastic |
| Dimension | 58 mm × 61 mm × 159.8 mm (2.28″ × 2.40″ × 6.42″) |
| Weight | Approx. 210 g (0.46 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Power Supply | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera |
| Consumption | Max. 5.3 W |
| IR Range | Up to 30 m |
