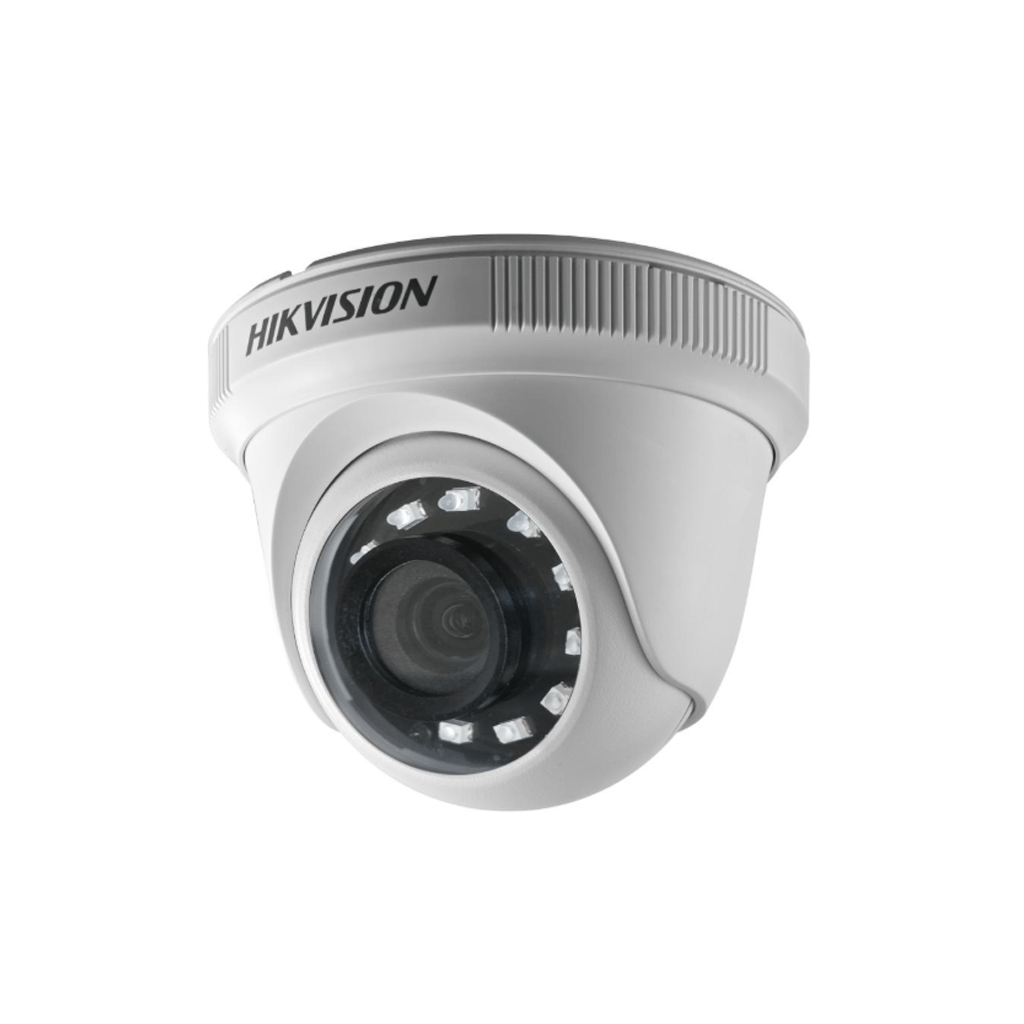

HIKVISION DS-2CE56D0T-IPF
2 MP Indoor Fixed Turret Camera
Features
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Image | |
| Frame Rate | TVI: 1080 p @25 fps/30 fps AHD: 1080 p @25 fps/30 fps CVI: 1080 p @25 fps/30 fps CVBS: PAL/NTSC |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto |
| Image Enhancement | DWDR, BLC, Global |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Mirror, Smart IR, Sharpness, AGC |
| General | |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Communication | HIKVISION-C |
| Dimension | Ø 89.9 mm × 70.1 mm (Ø 3.54″ × 2.76″) |
| Weight | Approx. 125 g (0.28 lb.) |
| Power | 12 VDC ± 25%, Max. 3.5 W |
