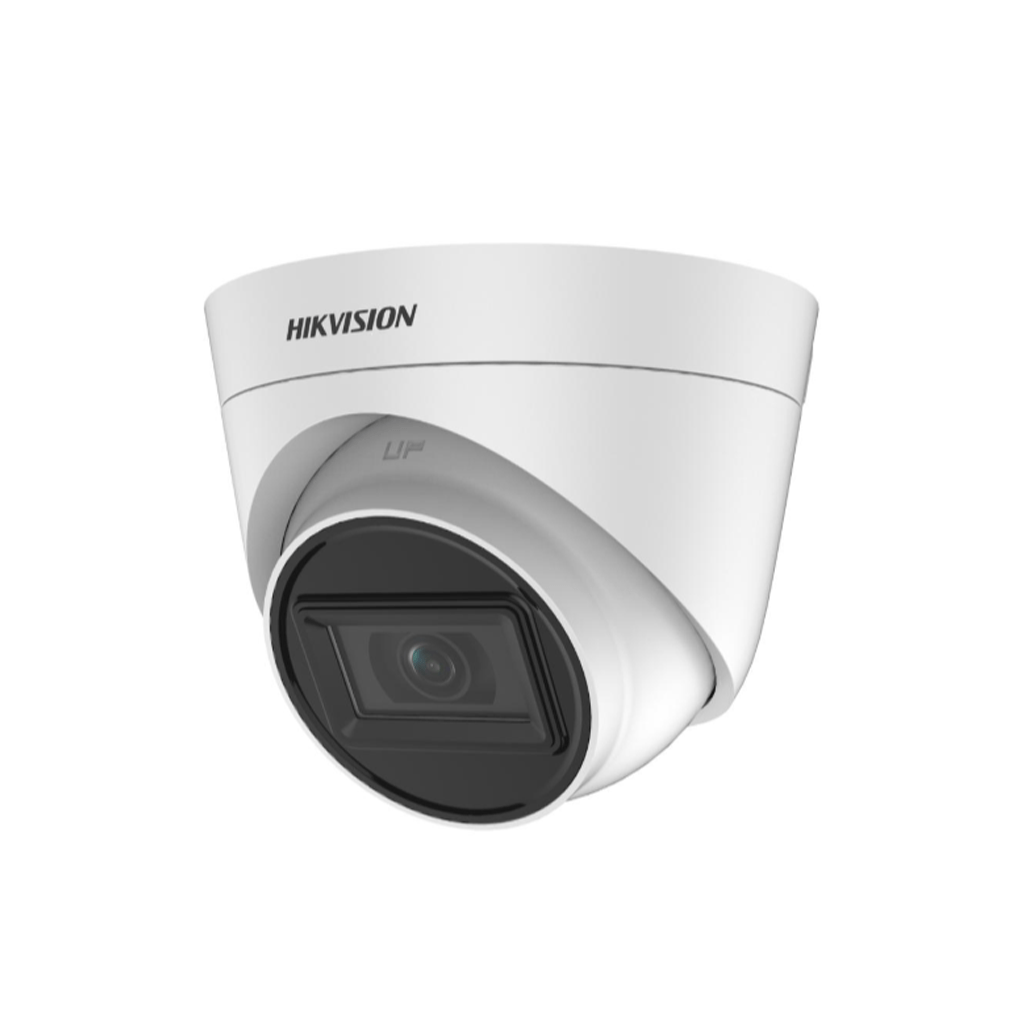

HIKVISION DS-2CE56D0T-IT3E(C)
2 MP PoC Fixed Turret Camera
Features
- 2 MP PoC turret camera
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Transmits both HD video and power over the same coaxial cable
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps |
| Day & Night | ICR |
| Min. Illumination | 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Image | |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT |
| White Balance | Auto/Manual |
| Image Enhancement | DWDR,BLC,HLC,Global |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Smart IR, Sharpness, AGC |
| General | |
| Power | 12 VDC ± 25%, PoC.af. Max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Material | Main body: Metal, Enclosure: Plastic |
| Communication | HIKVISION-C |
| Dimension | Ø109.8 mm × 91 mm (Ø4.32″ × 3.58″) |
| Weight | Approx. 310 g (0.68 lb.) |
