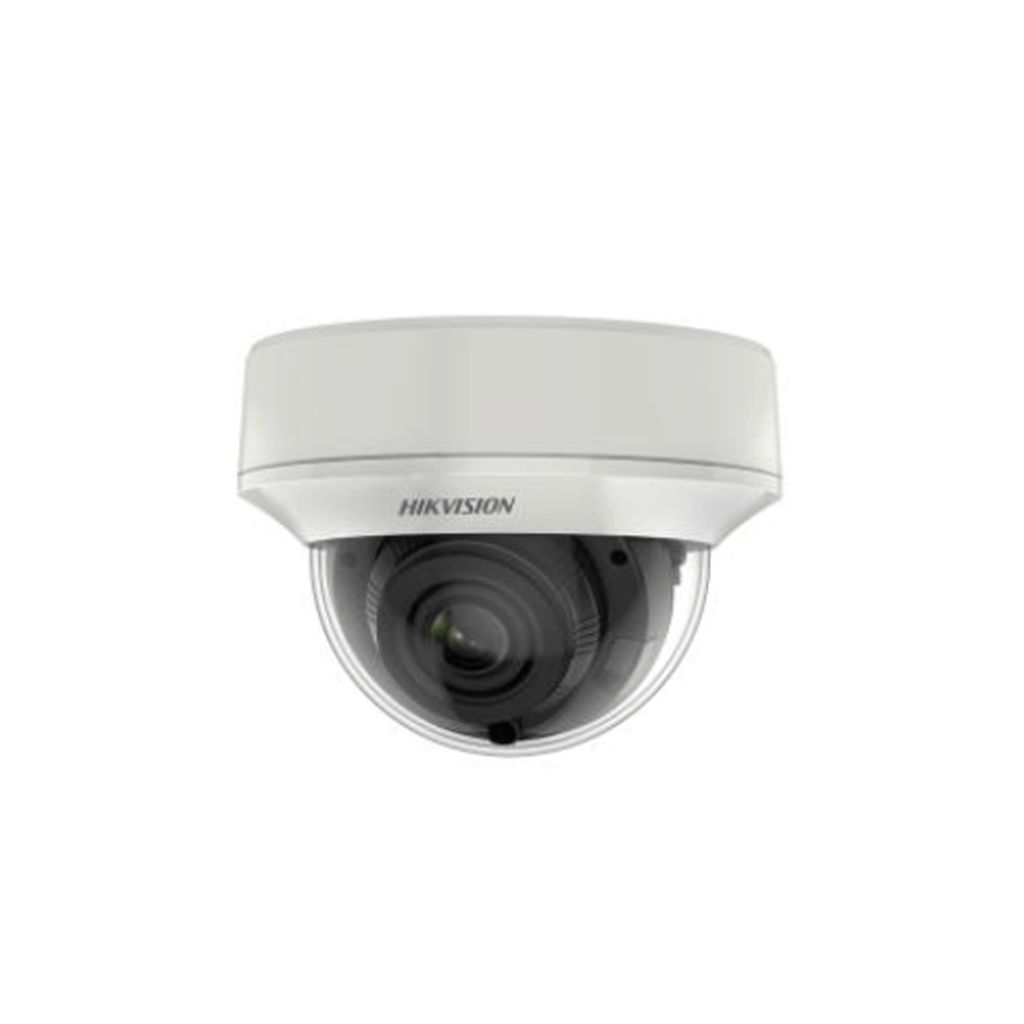

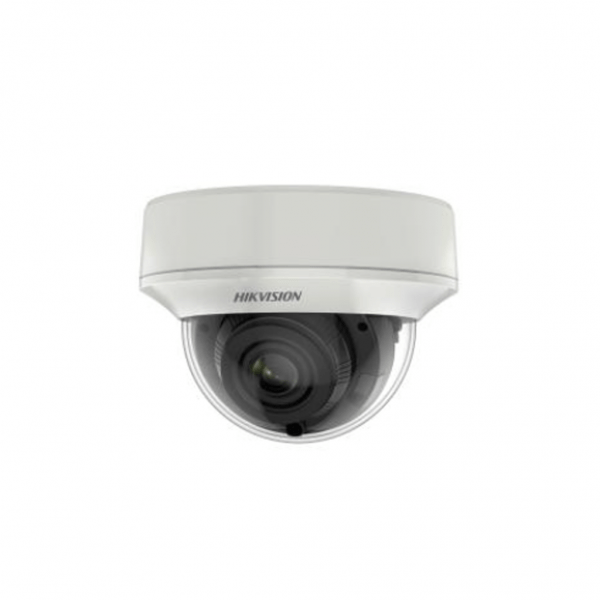

HIKVISION DS-2CE56U1T-ITZF
4K Indoor Motorized Varifocal Dome Camera
Features
- 8 MP dome camera
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 8.29 MP progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.01 Lux@(F2.4, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355° |
| Signal System | PAL/NTSC |
| Image | |
| Image Settings | Brightness;Sharpness;Mirror;AGC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC;HLC |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| General | |
| Power | 9 VDC to 15 VDC, max. 6.4 W *You are recommended to use one power adapter to supply the power for one camera |
| Material | Plastic |
| Dimension | Ø 136 mm × 101.94 mm (Ø 5.35″ × 4.01″) |
| Weight | Approx. 450 g (0.99 lb.) |
| Operating Condition | -40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
