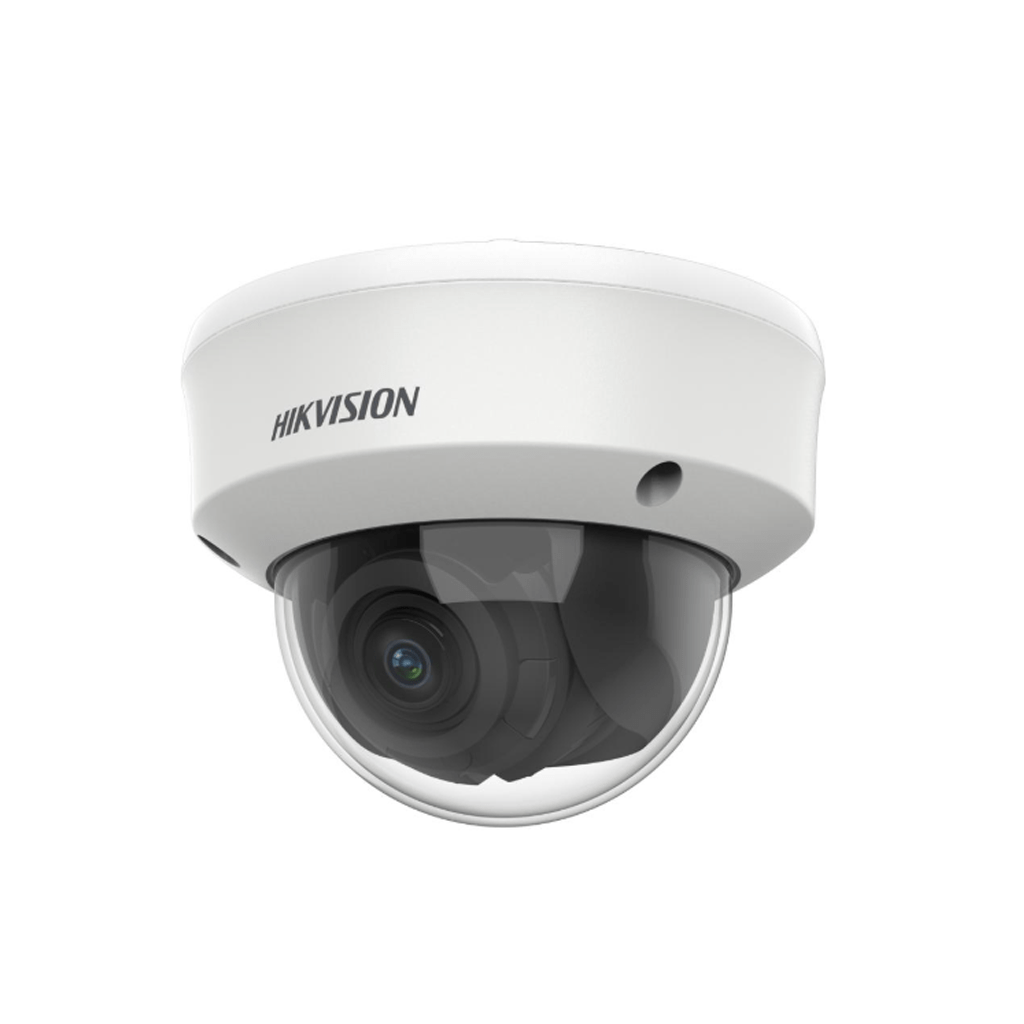

HIKVISION DS-2CE5AD0T-VPIT3F(C)
2 MP Vandal Manual Varifocal Dome Camera
Features
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.7 mm to 13.5 mm varifocal lens
- Up to 40 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67) and vandal resistant (IK10)
Specifications
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | TVI: 1920 × 1080 @ 30 fps, 1920 × 1080 @ 25 fps AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens Mount | Φ14 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Image | |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT |
| White Balance | Auto/Manual |
| Image Enhancement | DWDR,BLC,HLC,Global |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Smart IR, Sharpness, AGC |
| General | |
| Power | 12 VDC ± 25%, Max. 5 W |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Material | Main Body: Metal, Cover: Plastic |
| Communication | HIKVISION-C |
| Dimension | Ø 143 mm × 106.7 mm ( Ø 5.62″ × 4.19″) |
| Weight | Approx. 630 g (1.39 lb.) |
