描述
海康威視 DS-2CE5AD3T-AVPIT3ZF 是 2MP 超低照度防暴電動變焦同軸半球鏡頭，最低照度 0.005 lux，具 120 dB 寬動態，變焦時自動對焦。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

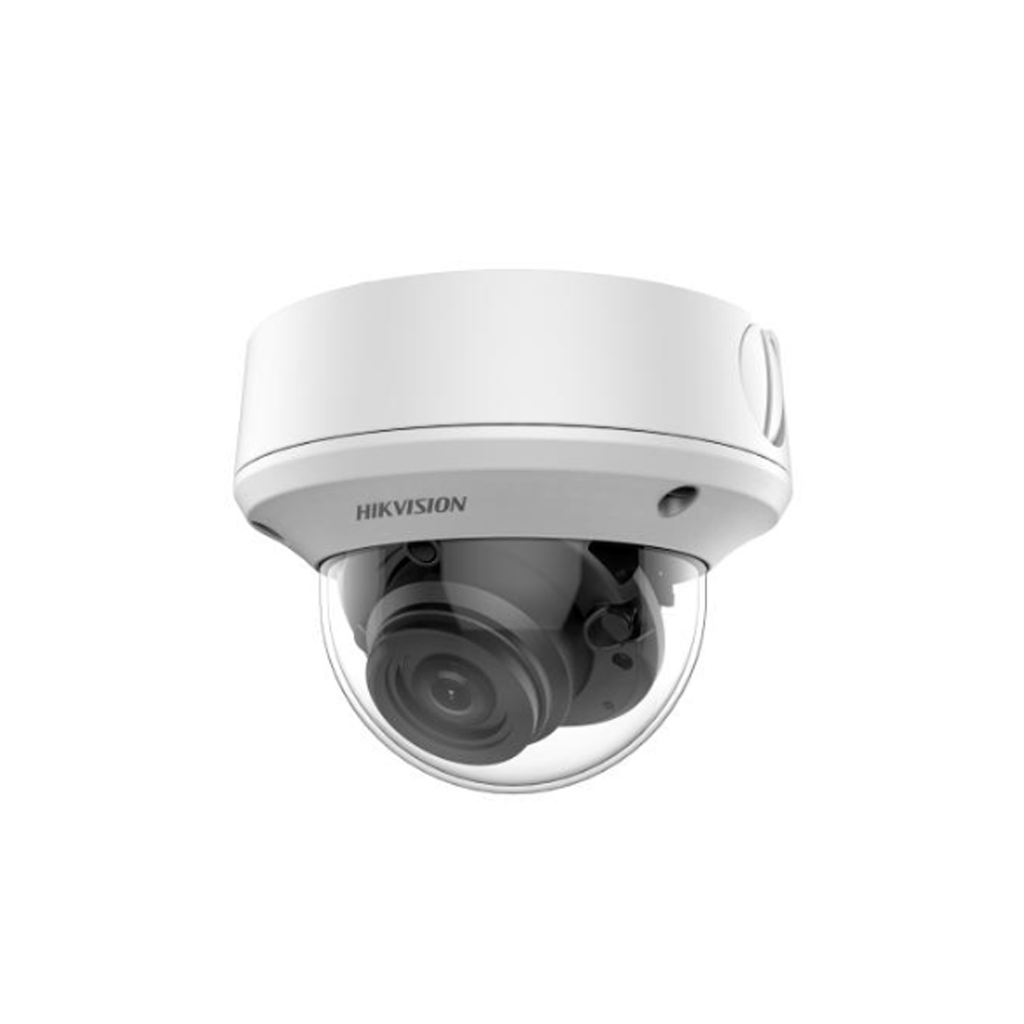

HIKVISION DS-2CE5AD3T-AVPIT3ZF
2 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera
Features
- 2 MP dome camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 70 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) ×1080 (V) |
| Min. Illumination | 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Signal System | PAL/NTSC |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Enhancement | Yes |
| AGC | High/Medium/Low |
| General | |
| Material | Metal |
| Dimension | Ø145 mm × 111.3 mm (5.70″ × 4.37″) |
| Weight | Approx. 830 g (1.83 lb.) -A: Approx. 870 g (1.92 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera |
| Consumption | Max. 7.7 W -A: Max. 9.7 W |
| IR Range | Up to 70 m |
