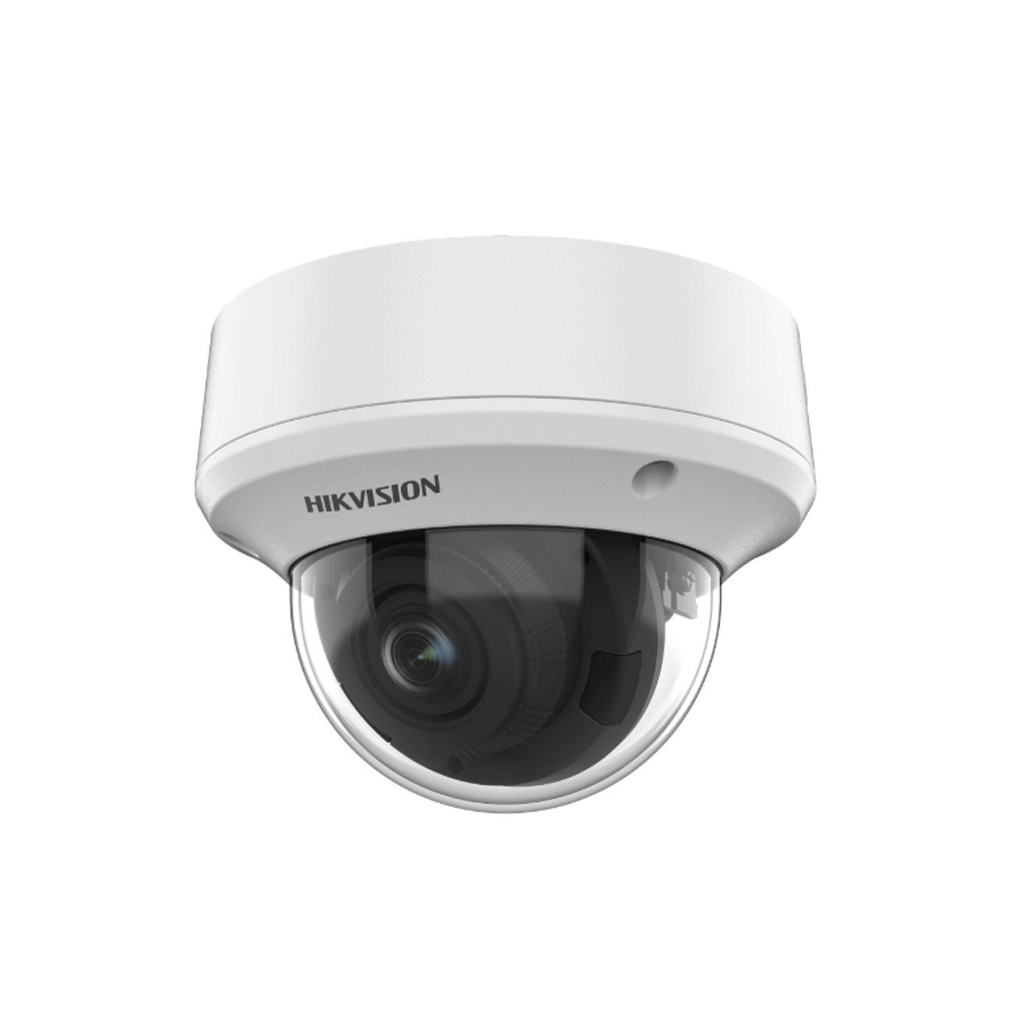

HIKVISION DS-2CE5AU1T-VPIT3ZF
4K Vandal Motorized Varifocal Dome Camera
Features
- 8 MP dome camera
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Signal System | PAL/NTSC |
| Image | |
| Image Settings | Brightness, Sharpness, DNR, Mirror, Smart IR, HLC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps,CVI: [email protected], 8MP@15fps,AHD: [email protected], 8M@15fps,CVBS: 960H P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | DWDR |
| Image Enhancement | BLC |
| White Balance | Auto/Manual |
| AGC | Yes |
| General | |
| Material | Metal |
| Dimension | Ø 145 mm × 111.3 mm (Ø 5.69″ × 4.37″) |
| Weight | Approx. 860 g (1.90lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Power Supply | 9 VDC to 15 VDC,-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC,*You are recommended to use one power adapter to supply the power for one camera |
| Consumption | Max. 6.4 W,-A: Max. 8.2 W |
| IR Range | Up to 60 m |
