描述
DS-2CE67DV0T-PTLS

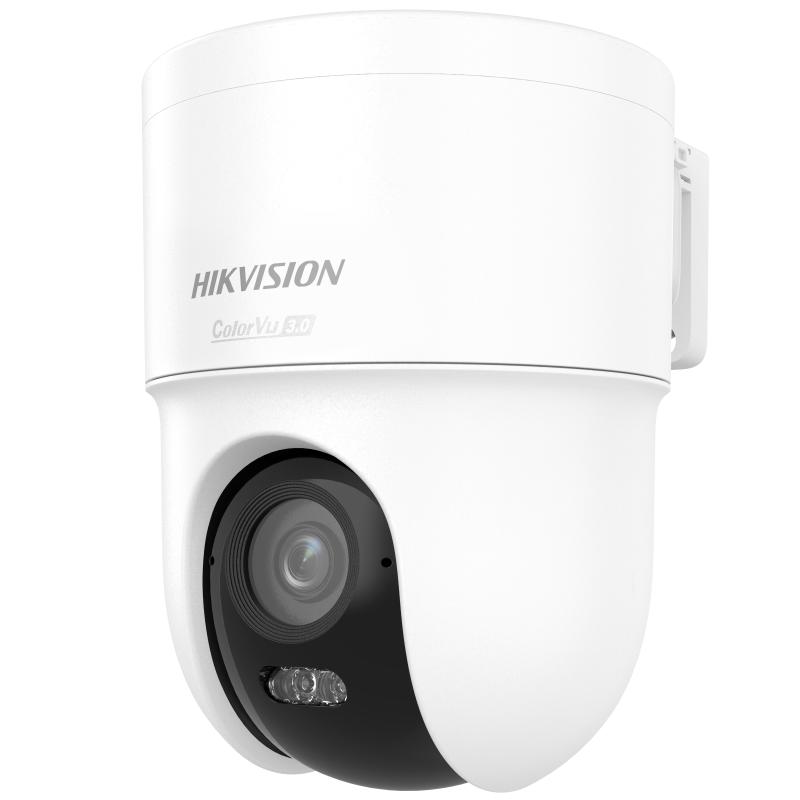

2MP ColorVu 3.0 Fixed PT Camera
DS-2CE67DV0T-PTLS 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
2 MP CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| Min. Illumination |
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s |
| Day & Night |
ICR |
| Angle Adjustment |
Pan: 0° to 350°,Tilt: 0° to 100° |
| Signal System |
PAL/NTSC |
| Slow Shutter |
Max. 16 times |
Lens
| Lens Type |
2.8 mm, 3.6 mm fixed lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 107.8°, vertical FOV: 59.0°，diagonal FOV: 126.7° 3.6 mm, horizontal FOV: 87.2°, vertical FOV: 46.2°，diagonal FOV: 104.8° |
| Lens Mount |
M12 |
Microphone
| Pickup Distance |
In a radius of up to 5 m |
| Amount |
1 |
Functions
| Audio Function |
AI Noise Reduction, Automatic Gain Control |
Illuminator
| Supplement Light Type |
Smart, IR, White Light |
| Supplement Light Range |
IR: Up to 30 m,White Light: Up to 30 m |
| Image Parameters Switch |
STD/HIGH-SAT/HIGHLIGHT |
| Image Settings |
Anti-banding,Brightness,Sharpness |
| Frame Rate |
TVI: 1080p @ 25 fps/30 fps |
| Day/Night Mode |
Auto/Color |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Image Enhancement |
DWDR,BLC,HLC,Global |
| Noise Reduction |
AI DNR |
| White Balance |
Auto,Manual |
Interface
| Video Output |
1 HD analog output |
| Built-in Microphone |
Yes |
General
| Power |
12 VDC ± 25%, max. 9.3 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required. |
| Material |
Plastic |
| Operating Condition |
-30 °C to 60 °C (-22°F to 140°F). Humidity: 90% or less (non-condensing) |
| Communication |
HIKVISION-C |
| Dimension |
110.8 mm × 145.7 mm × 145.5 mm (4.36" × 5.74" × 5.73") |
Approval
