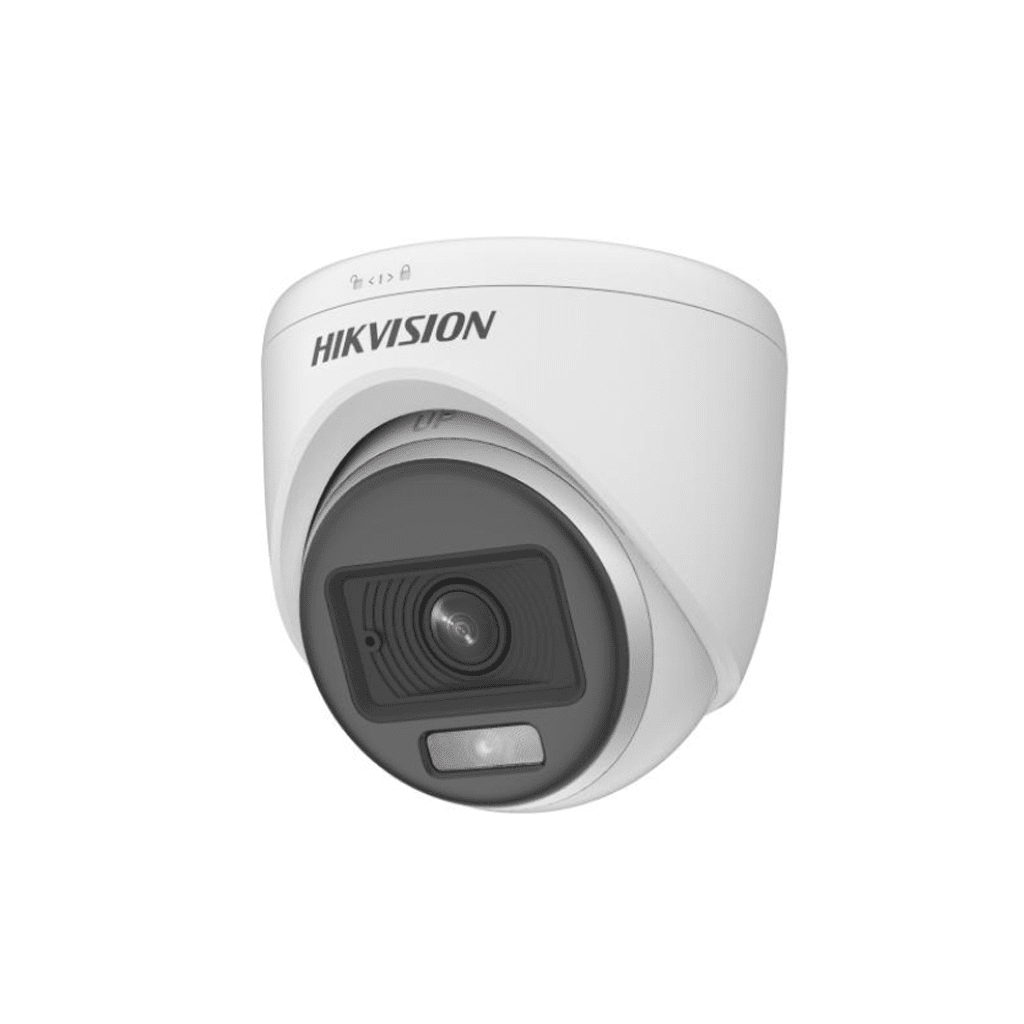

HIKVISION DS-2CE70KF0T-PFS
3K ColorVu Indoor Audio Fixed Turret Camera
Features
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in mic
Specifications
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Image | |
| Frame Rate | TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Color |
| White Balance | Auto/Outdoor/Global/Manual |
| Image Enhancement | DWDR, BLC, HLC, Global, HLS |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC |
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Communication | HIKVISION-C |
| Dimension | Φ 85.02 mm × 81.25 mm (Φ 3.35″ × 3.2″) |
| Weight | Approx. 165.5 g (0.36 lb.) |
| Power | 12 VDC ± 25%, Max. 2.5 W, *You are recommended to use one power adapter to supply the power for one camera |
