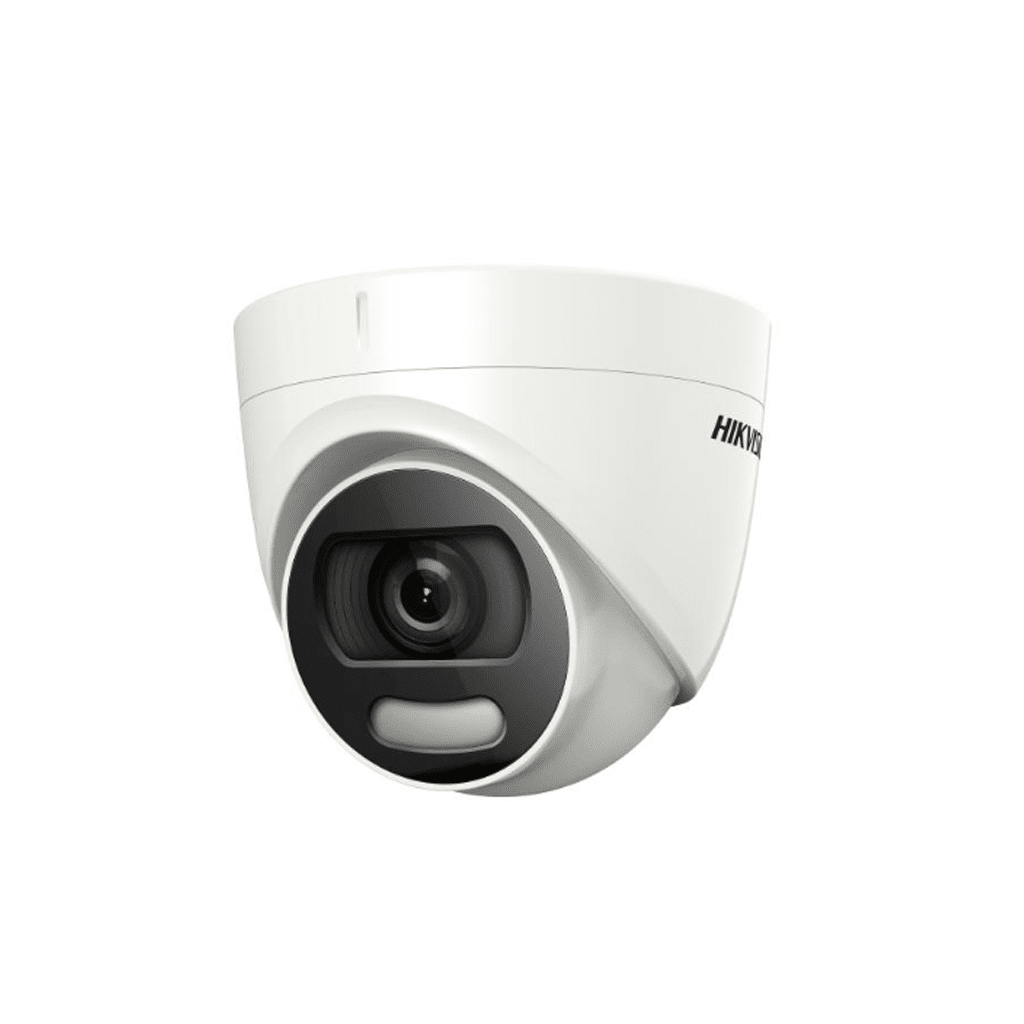

HIKVISION DS-2CE72HFT-E
5 MP ColorVu PoC Fixed Turret Camera
Features
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Smart Light, up to 20 m white light distance
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness;Sharpness;Mirror;AGC;Anti-Banding |
| Frame Rate | 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC;HLC;Global;HLS |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| General | |
| Power | 12 VDC±25%/PoC.af, max. 4 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″) |
| Weight | Approx. 350 g (0.77 lb.) |
| Operating Condition | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
