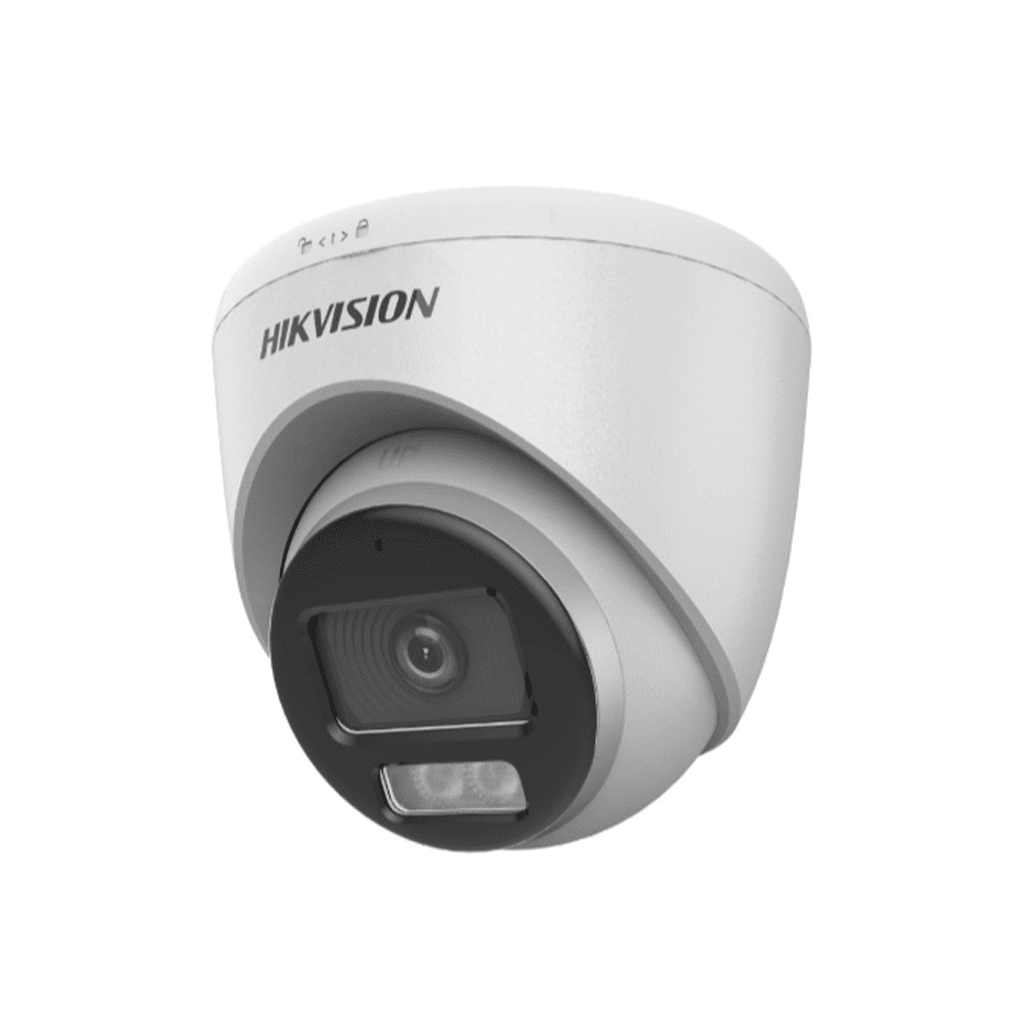

HIKVISION DS-2CE72KF0T-LFS
3K ColorVu Smart hybrid light Fixed Turret Camera
Features
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 40 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Specifications
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Frame Rate | TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Image | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Auto/Color |
| White Balance | Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode | HLS;DWDR;BLC;HLC;Global |
| Noise Reduction | 2D DNR |
| Function | Smart IR;Brightness;Sharpness;AGC;Anti-Banding |
| General | |
| Power | 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| Protection Level | IP67 |
| Material | Enclosure: Plastic Main body: Metal |
| Communication | HIKVISION-C |
| Dimension | Ø109.98 mm × 98.27 mm (Ø4.33″ × 3.87″) |
| Weight | Approx. 320 g (0.71 lb.) |
