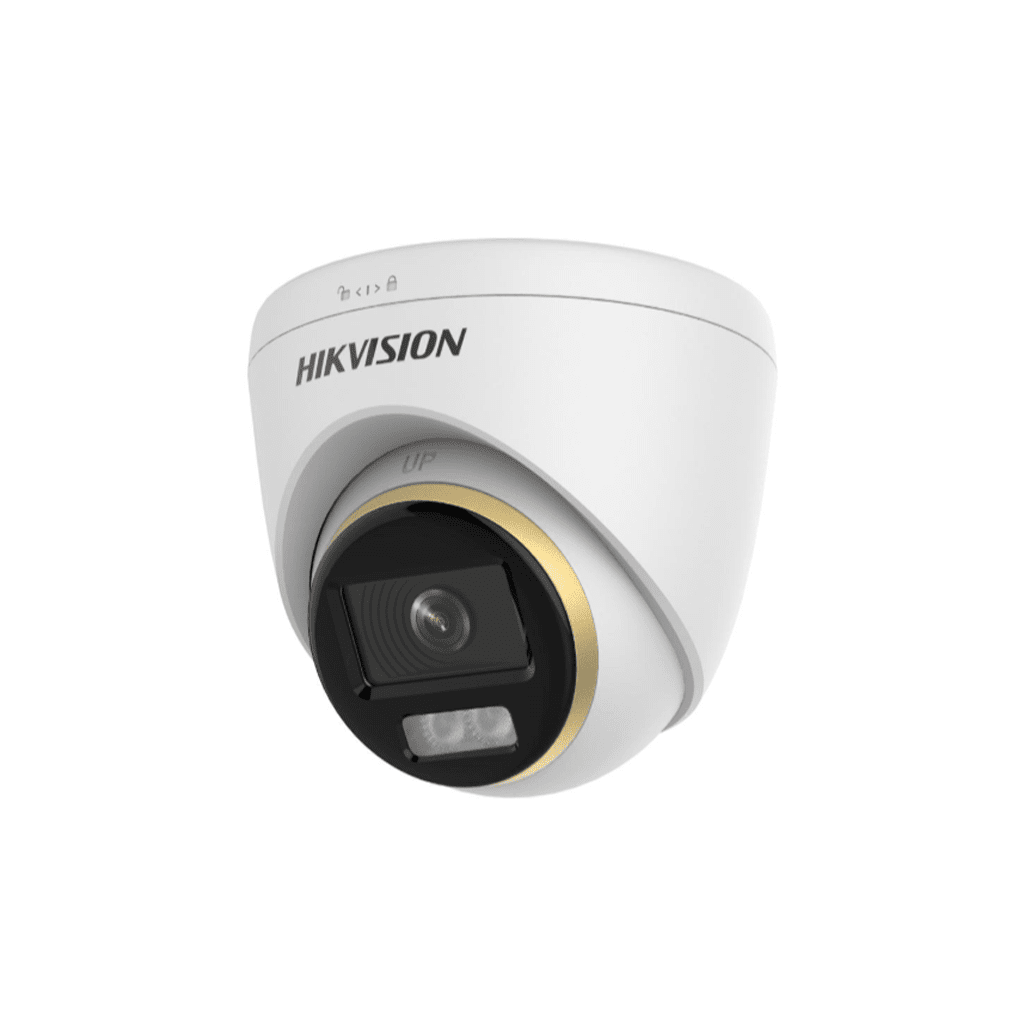

HIKVISION DS-2CE72KF3T-L
3K ColorVu Dual-light Fixed Turret Camera
Features
- High quality imaging with 3K, 2960 × 1665 resolution
- Excellent low-light performance
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Specifications
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Slow Shutter | Max. 16 times |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image | |
| Day/Night Mode | Auto/Color |
| Frame Rate | 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps |
| Privacy Mask | 4 programmable privacy masks/8programmable privacy masks |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| White Balance | Auto/Outdoor/Global/Manual |
| Image Enhancement | WDR;BLC;HLC;Global;HLS |
| Noise Reduction | 3D DNR/2D DNR |
| Image Settings | Anti-Banding;Smart Light;Brightness;Contrast;Mirror |
| General | |
| Power | 12 VDC ± 25%, 0.65 A, max. 7.8 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing) |
| Material | Main body: Metal, Enclosure: Plastic |
| Communication | HIKVISION-C |
| Dimension | Ø109.98 mm × 98.27 mm (Ø4.33″ × 3.87″) |
| Weight | Approx. 325 g (0.72 lb.) |
