描述
海康威視 DS-2CE72KF3TP-DLS 是 3K ColorVu 雙鏡頭同軸半球鏡頭，內置拼接演算法呈現 180° 畫面，解像度 3328 × 1504，F1.0 大光圈，具 130 dB 寬動態。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

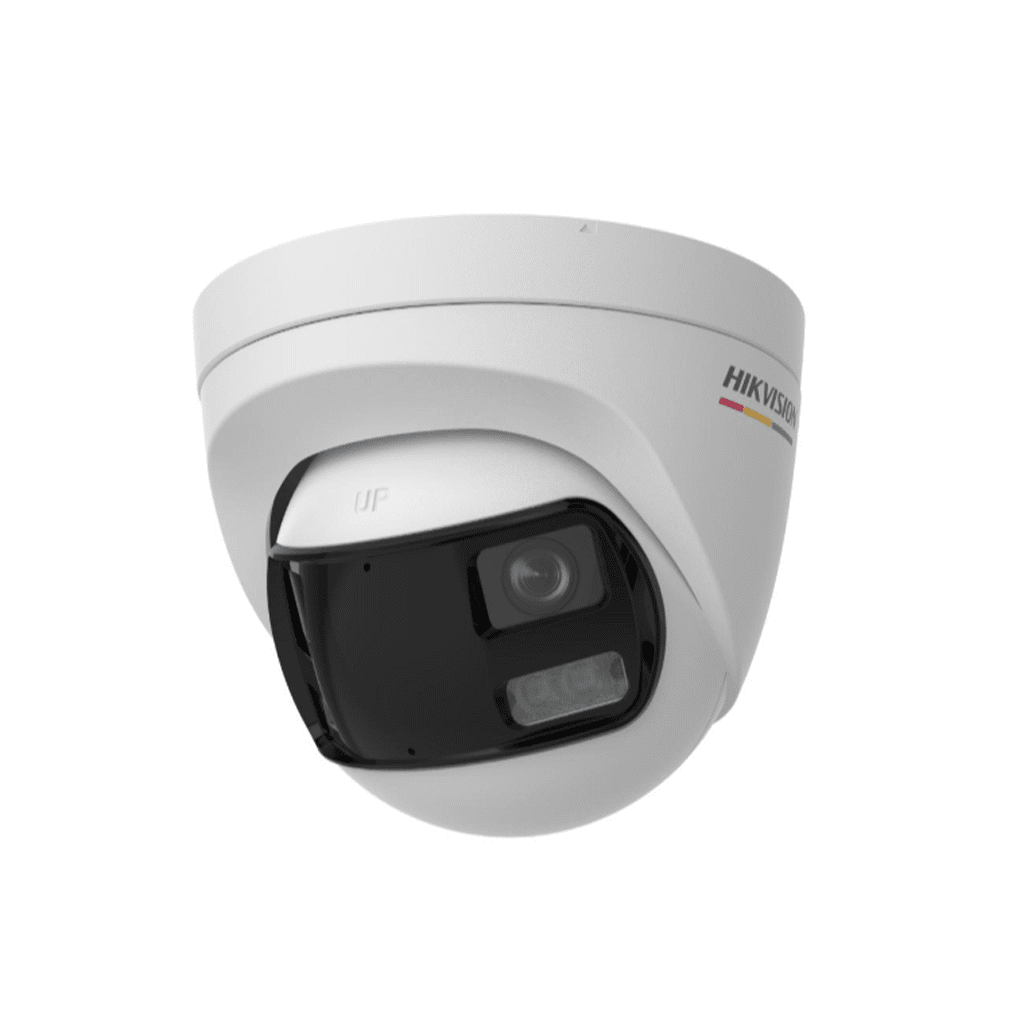

HIKVISION DS-2CE72KF3TP-DLS
3K ColorVu Dual-Lens Fixed Turret Camera
Features
- Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
- High quality imaging with 3K, 3328 × 1504 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Up to 40 m white light and 40 m IR distance for bright night imaging
- Built-in mic, high quality audio with audio over coaxial cable
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Max. Resolution | 3328 (H) × 1504 (V) |
| Shutter Time | 1/20 s to 1/50,000 s |
| Image Sensor | 3K CMOS |
| Slow Shutter | Max. 16 times |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image | |
| Frame Rate | 3K @20 dual |
| Privacy Mask | 4 programmable privacy masks |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Auto |
| White Balance | Auto/Manual |
| Image Enhancement | WDR;BLC;HLC;Global |
| Noise Reduction | 3D DNR |
| Image Settings | Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC |
| General | |
| Power | 12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing) |
| Material | Main body: Metal, Enclosure: Plastic |
| Communication | HIKVISION-C |
| Dimension | Ø130.11 mm × 109.2 mm (Ø5.12″ × 4.3″) |
| Weight | Approx. 570 g (1.26 lb.) |
