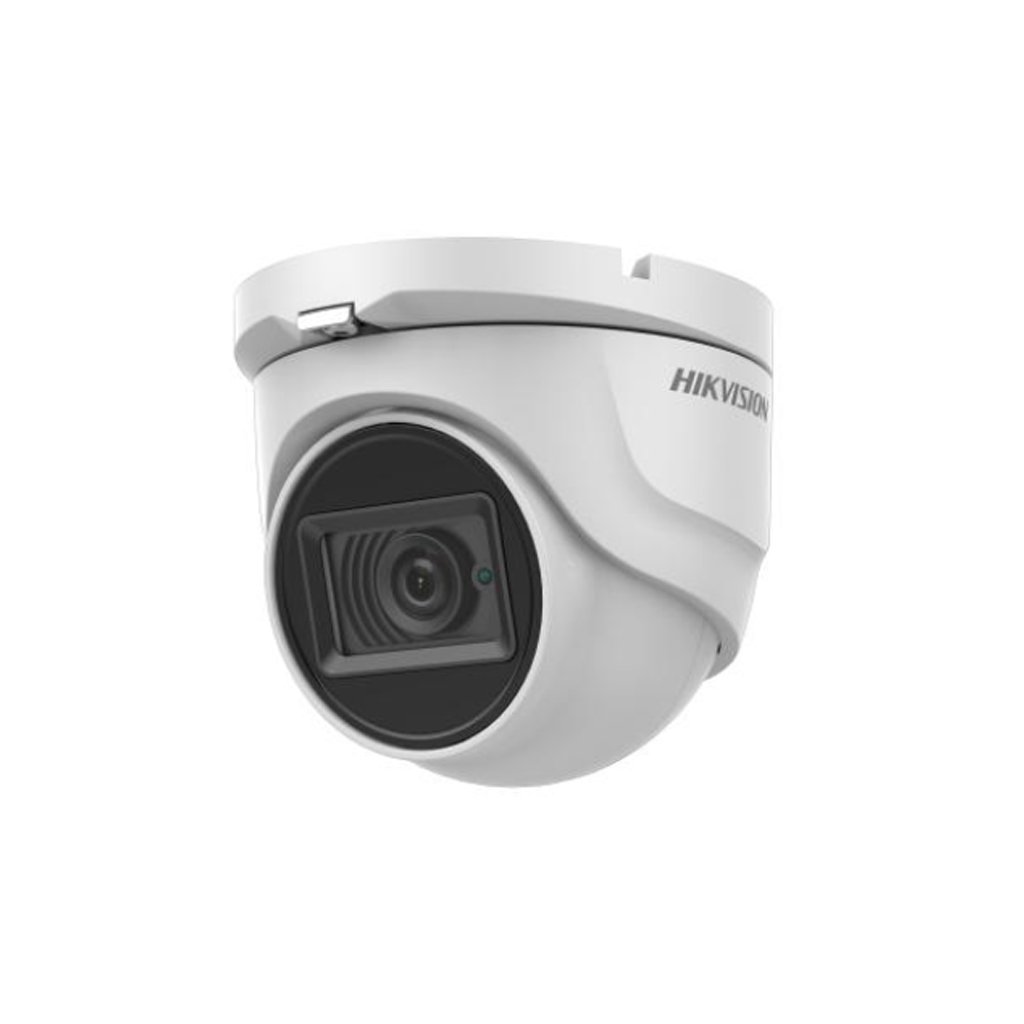

HIKVISION DS-2CE76U7T-ITMF
4K Ultra Low Light Fixed Turret Camera
Features
- 8 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 8.29 MP CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: [email protected], 8MP@15fps CVI: [email protected], 8MP@15fps CVBS: P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC, HLC |
| White Balance | Auto/Manual |
| AGC | Support |
| General | |
| Material | Metal |
| Dimension | 90 mm × 79.37 mm (3.54″ × 3.12″) |
| Weight | Approx. 310 g (0.68 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera |
| Consumption | Max. 4.2 W |
| IR Range | Up to 30 m |
