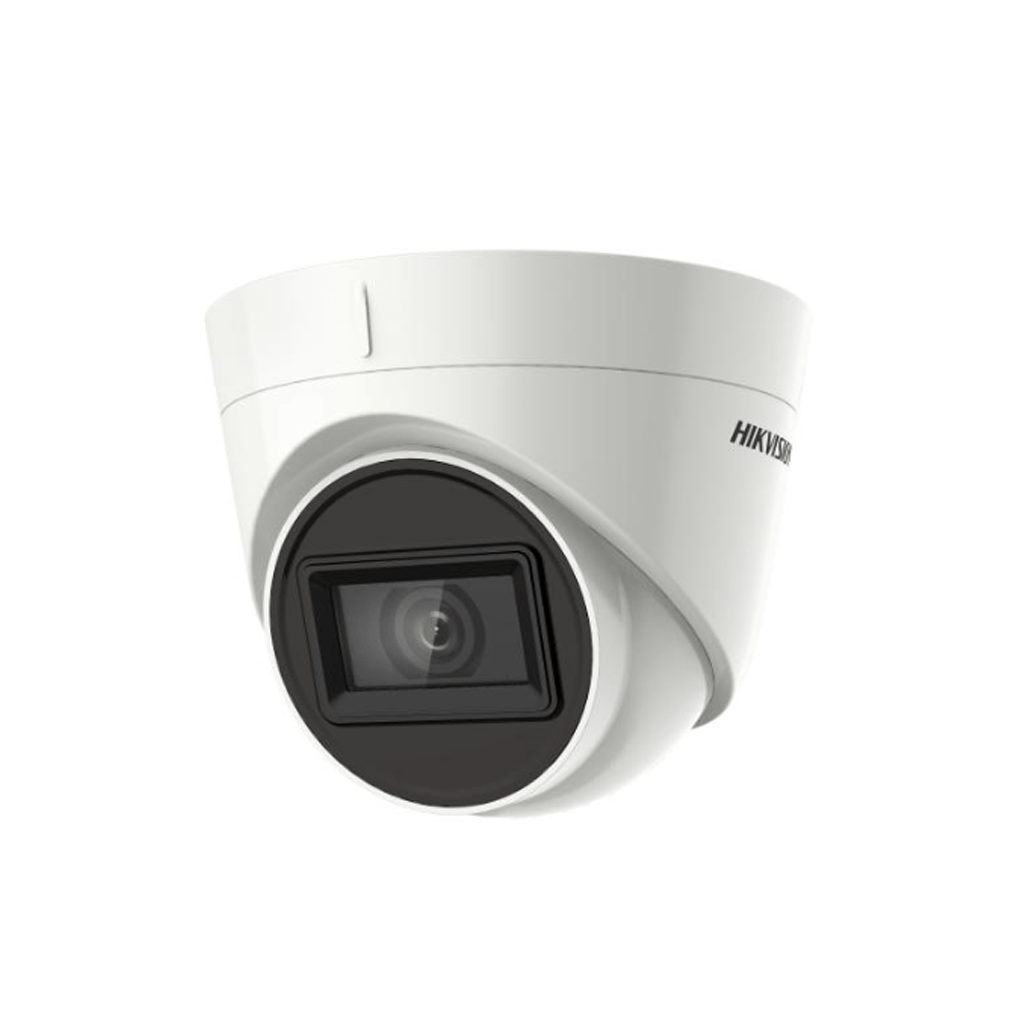

HIKVISION DS-2CE78U1T-IT1F
4K Fixed Turret Camera
Features
- 8 MP turret camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specifications
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Image | |
| Image Settings | Brightness;Sharpness;AGC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC;HLC |
| White Balance | 2D DNR |
| AGC | Auto/Manual |
| General | |
| Power | 12 VDC ±25% Max. 5.3 W *You are recommended to use one power adapter to supply the power for one camera |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Ø 109.82 mm × 91.03 mm (Ø 4.32″ × 3.6″ ) |
| Weight | Approx. 320 g (0.71 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
